Front Side Door Bottom Auxiliary Sealing Strip Replacement (Coupe)
Front Side Door Bottom Auxiliary Sealing Strip Replacement (Coupe)

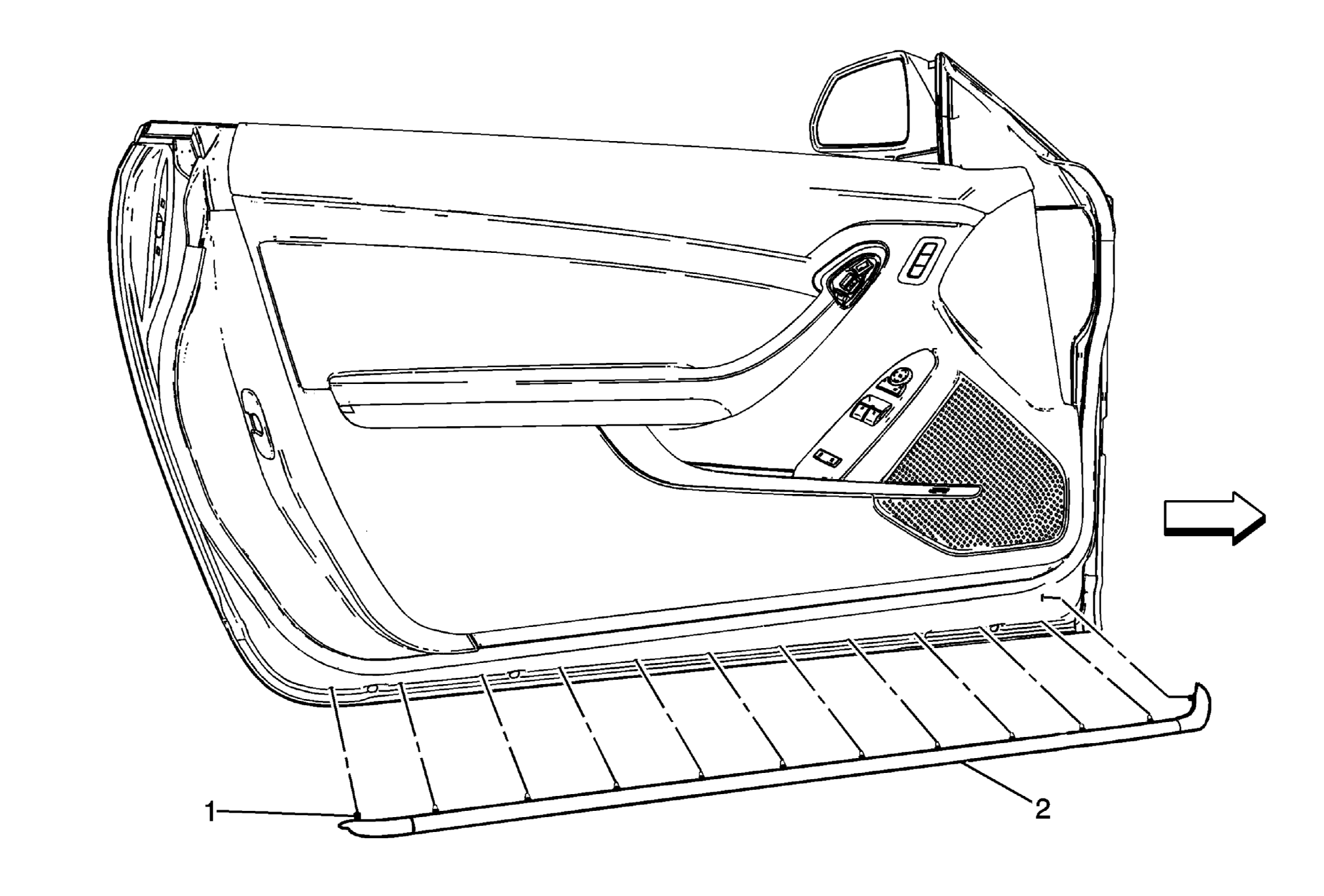

Fig 1: Front Side Door Bottom Auxiliary Sealing Strip & Retainers (Coupe)
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Front Side Door Bottom Auxiliary Sealing Strip Retainers (Qty: 12)
TIP:
Place the door in the full open position to remove the retainers .
2
Front Side Door Bottom Auxiliary Sealing Strip
