Front Side Door Auxiliary Weatherstrip Replacement

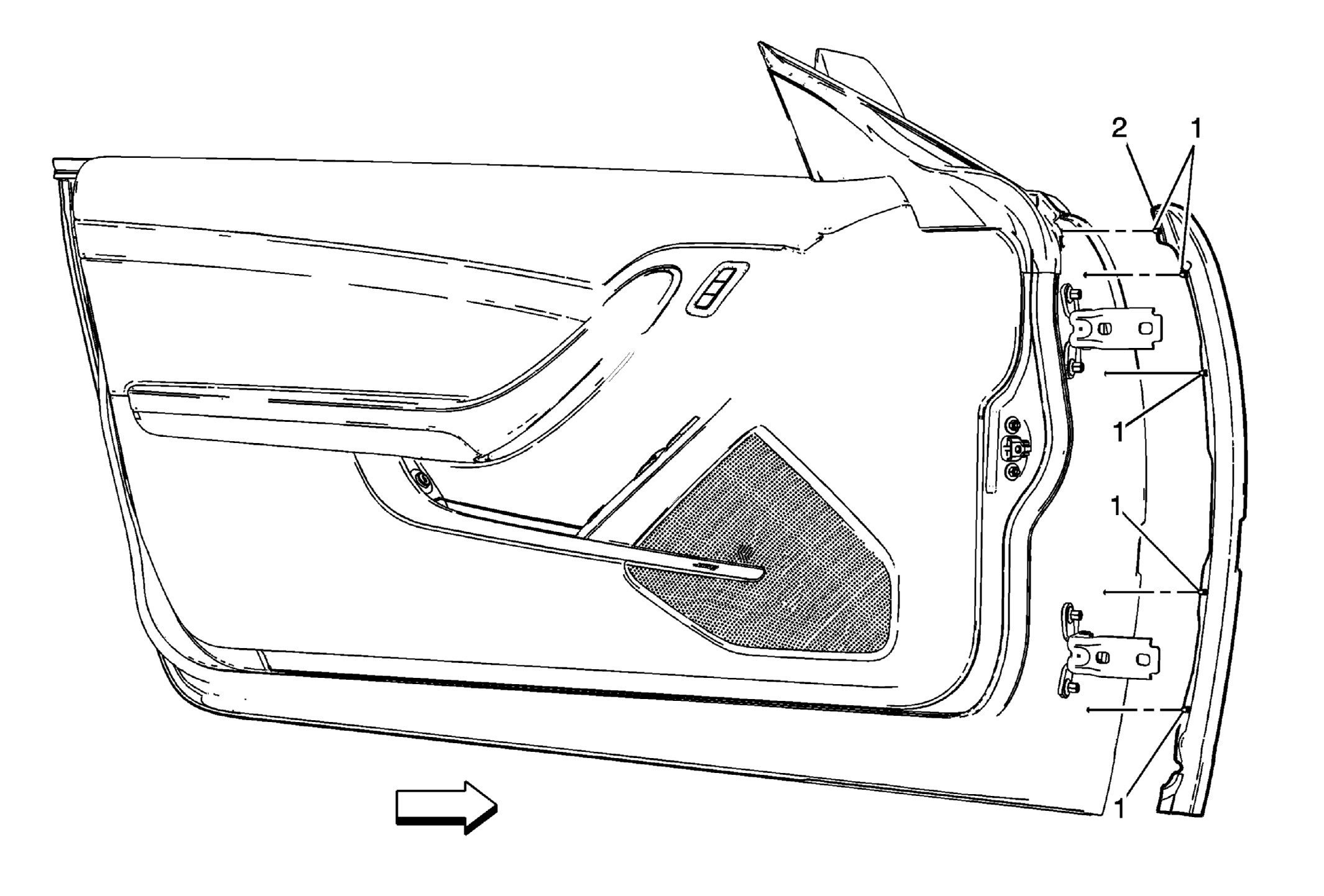

Fig 1: Front Side Door Auxiliary Weatherstrip & Push Pins
GM2326040Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Side Door Weatherstrip Push Pin (Qty: 5)

Procedure

  1. Place the door in the full open position to remove the retainers.
  2. Use a suitable tool to remove the retainers from the around the doors edge.
2 Front Side Door Weatherstrip
