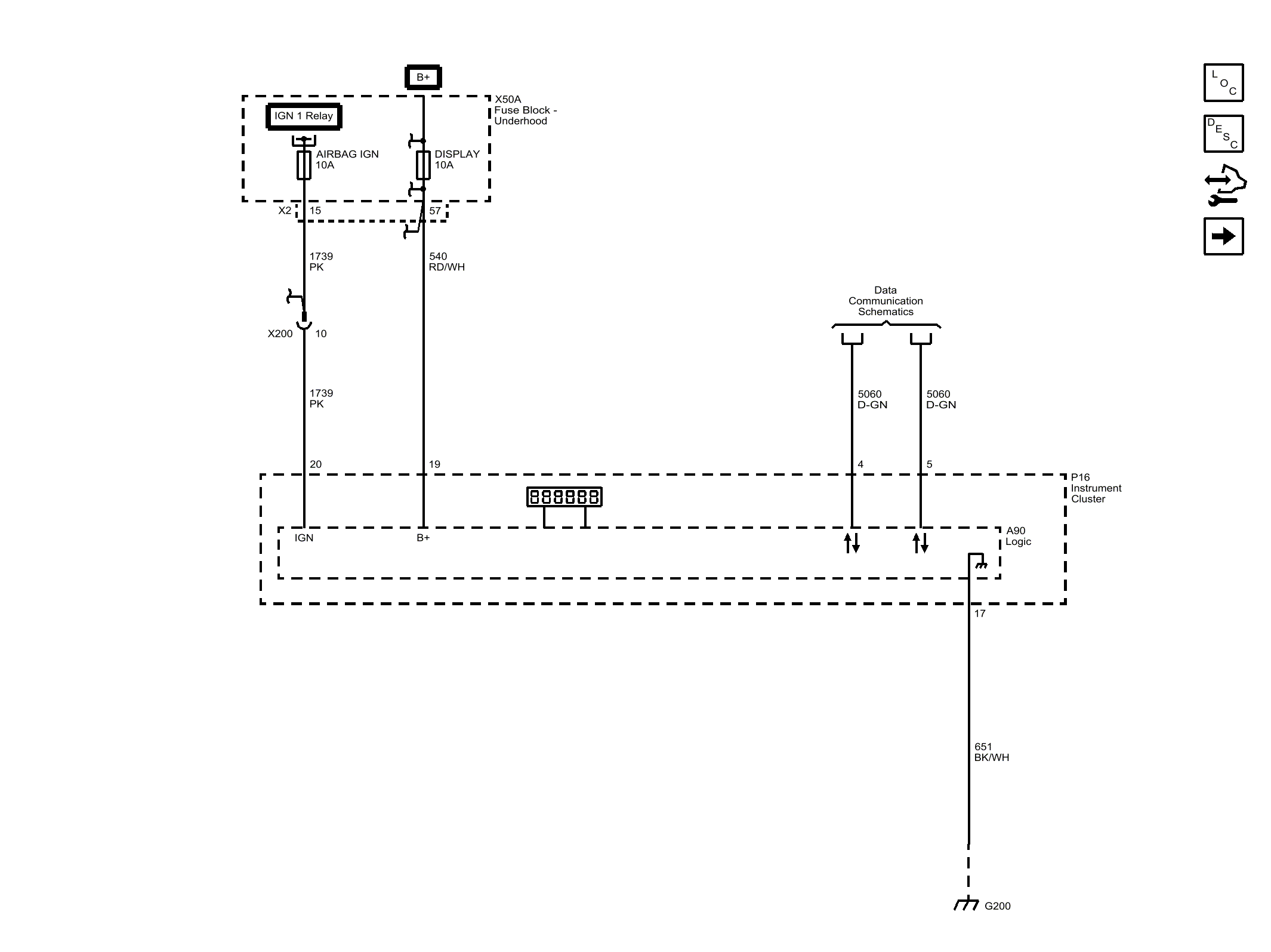

Home >> Cadillac >> 2015 >> CTS V, Automatic Trans >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel System Displays And Gauges (Coupe) >> Schematic Wiring Diagrams >> Instrument Cluster Wiring Schematics >> Power, Ground, and Odometer
