Driver Information System Wiring Schematics: Clock

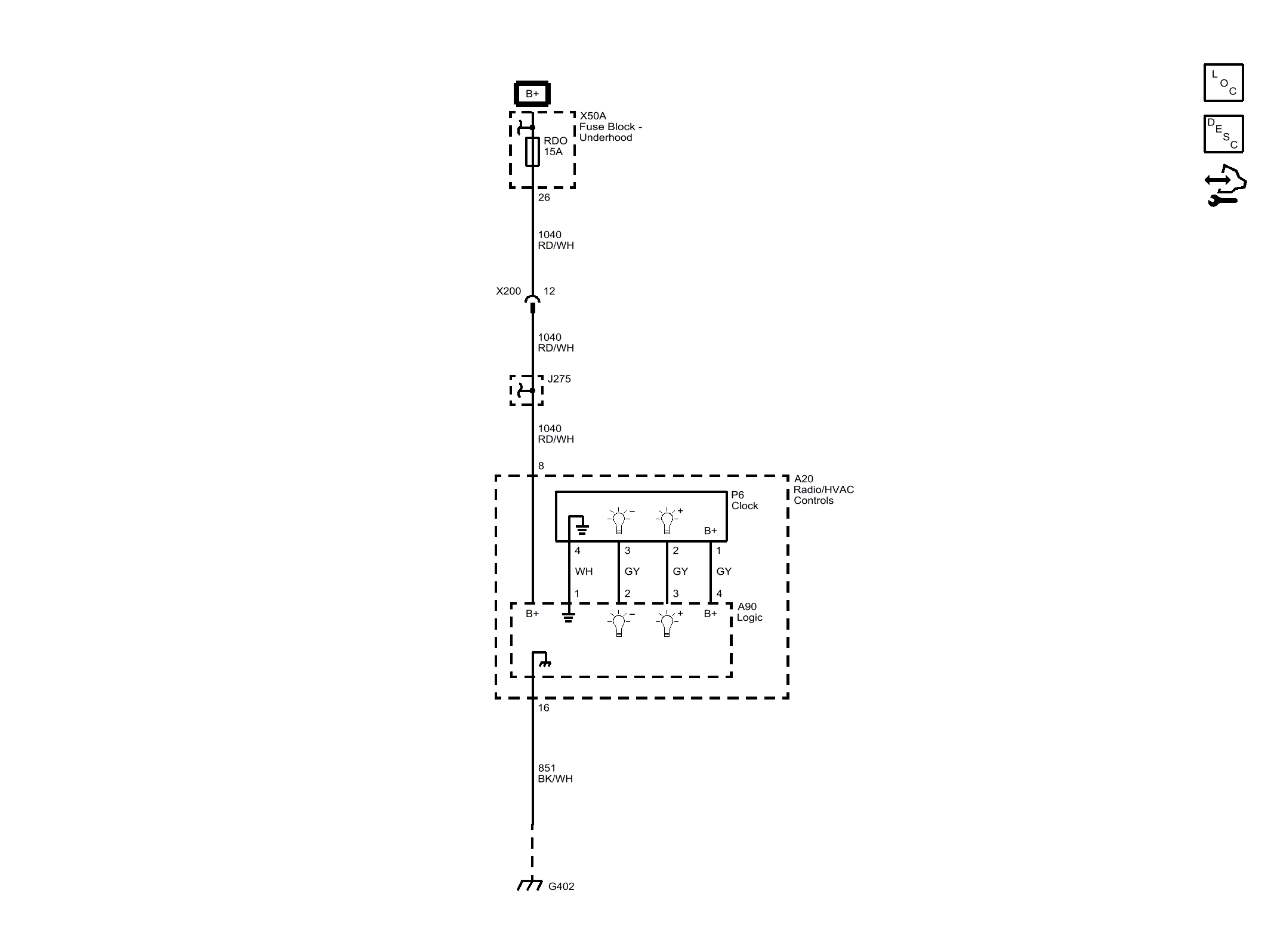

Fig 1: Clock

GM3766438

Courtesy of GENERAL MOTORS COMPANY
