X230 Body Harness COAX to Instrument Panel HarnessCOAX
|
|
|

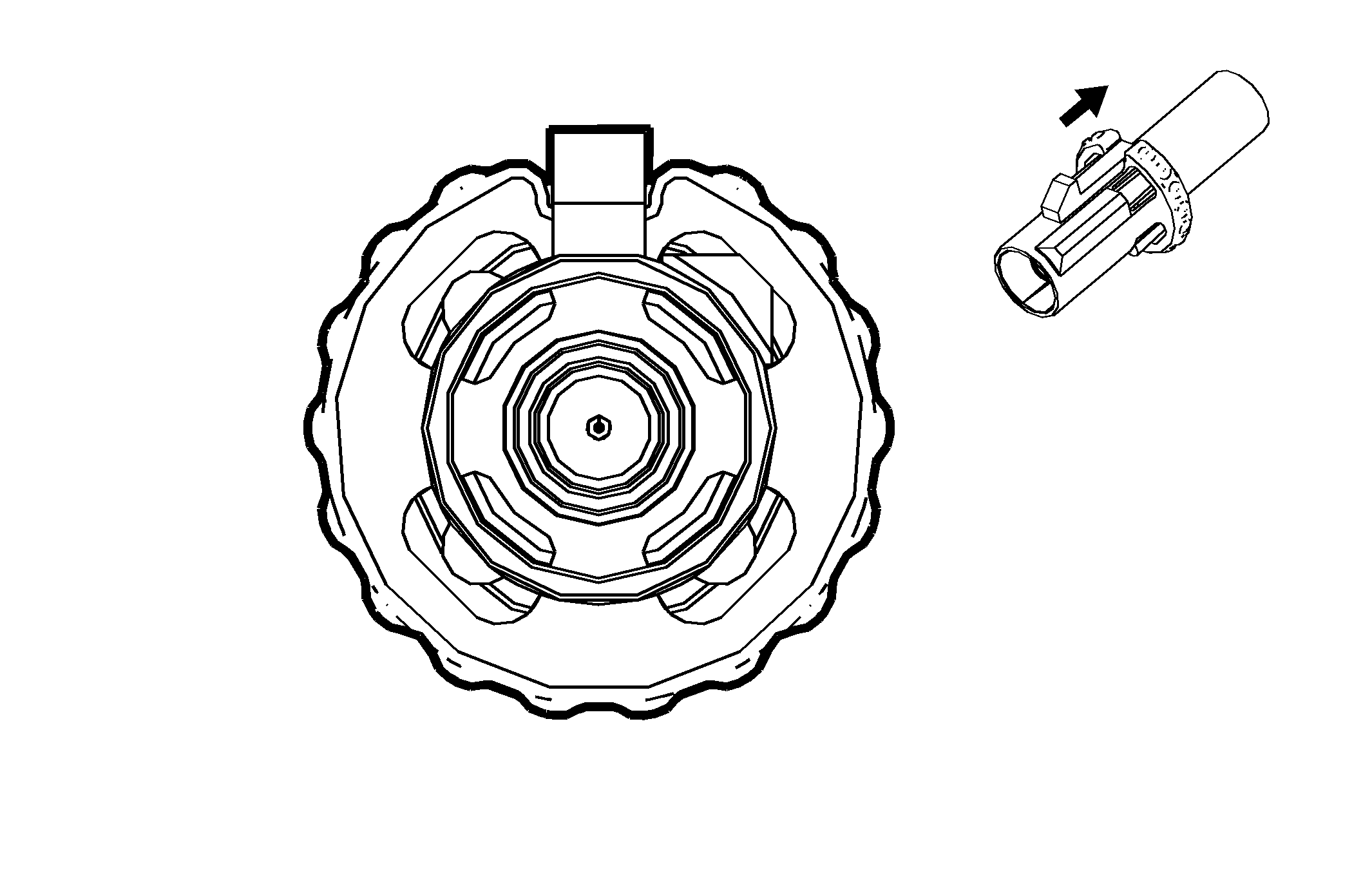

Connector Part Information
- Harness Type: Body COAX
- OEM Connector: 2138894-5
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 1-Way F Coax Type (GN)
|
Connector Part Information
- Harness Type: Instrument Panel COAX
- OEM Connector: 2FA1-NESP-C04W1
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 1-Way M Coax Type (GN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| - |
- |
COAX |
- |
I |
- |
(DAB/DMB) Coaxial Antenna DAB Signal |
- |
- |
COAX |
- |
I |
- |
