Instrument Panel Trim Plate Applique Replacement - Right Side

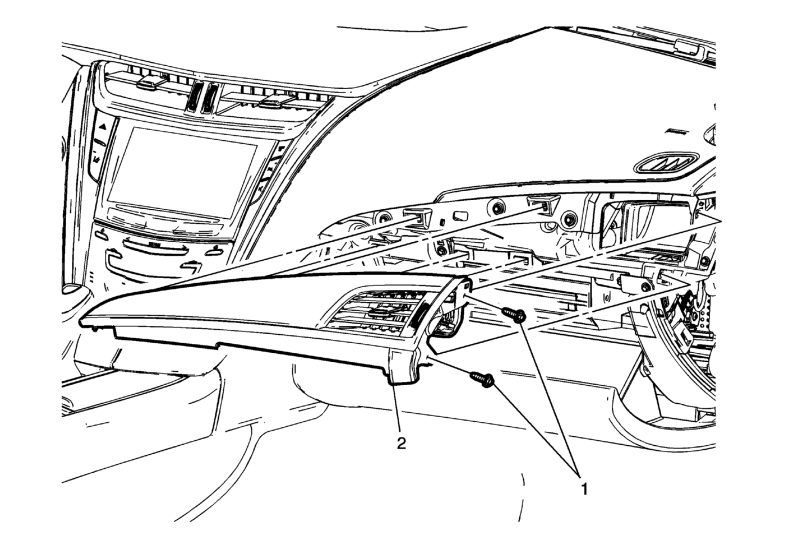

Fig 1: Instrument Panel Trim Plate Applique - Right Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the right instrument panel outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement .
1	Instrument Panel Molding Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Trim Plate Applique - Right Side Procedures Open the instrument panel compartment door to access the lower edge of the trim plate applique. Use a flat-bladed plastic trim tool to remove the trim plate applique from the instrument panel carrier. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Remove the right instrument panel outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement .

Instrument Panel Molding Bolt (Qty: 2)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Instrument Panel Trim Plate Applique - Right Side

Procedures

Open the instrument panel compartment door to access the lower edge of the trim plate applique.
Use a flat-bladed plastic trim tool to remove the trim plate applique from the instrument panel carrier.
Transfer components as necessary.
