Instrument Panel Trim Plate Applique Replacement - Left Side

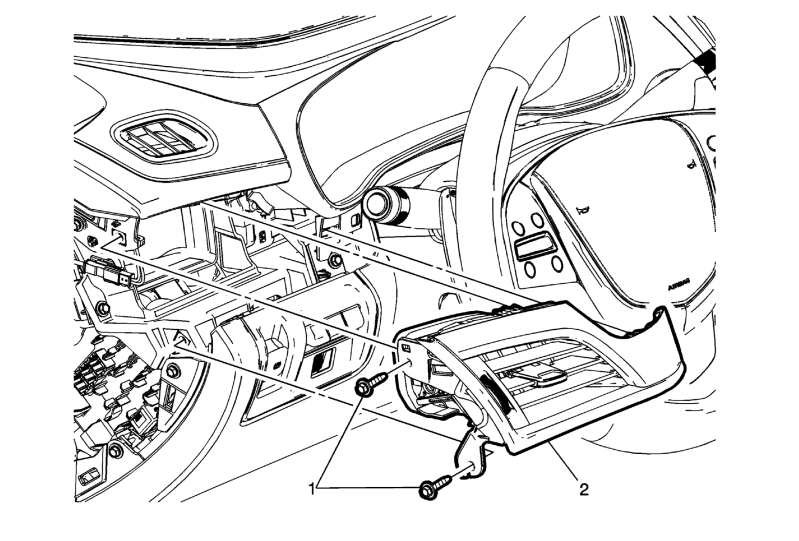

Fig 1: Instrument Panel Trim Plate Applique - Left Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement .
1	Instrument Panel Molding Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Trim Plate Applique - Left Side Procedure Use a flat-bladed plastic trim tool to remove the trim plate applique from the instrument panel carrier. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement .

Instrument Panel Molding Bolt (Qty: 2)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Instrument Panel Trim Plate Applique - Left Side

Procedure

Use a flat-bladed plastic trim tool to remove the trim plate applique from the instrument panel carrier.
Transfer components as necessary.
