Instrument Panel Extension Replacement

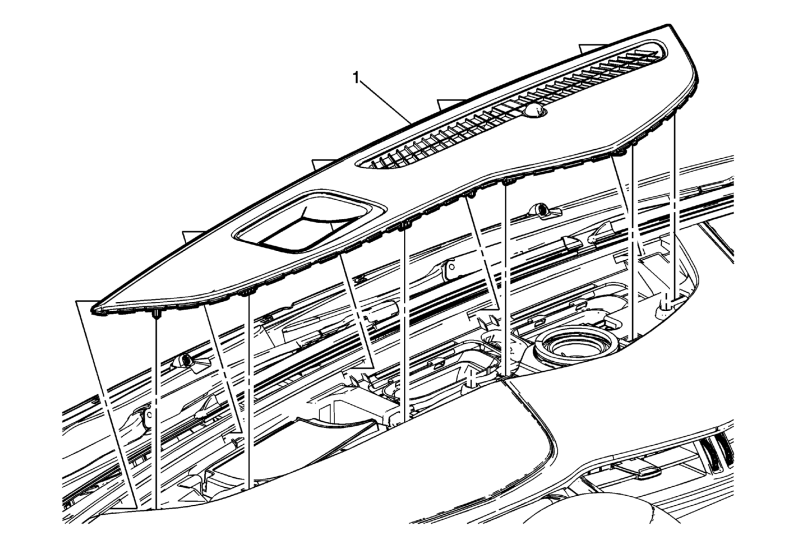

Fig 1: Instrument Panel Extension
GM3447914Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Instrument Panel Extension

Procedures

  1. Use a flat-bladed plastic trim tool to remove the extension from the instrument carrier.
  2. Disconnect the electrical connector.
  3. Transfer components as necessary.
