Front Floor Console Side Trim Panel Replacement - Left Side
Front Floor Console Side Trim Panel Replacement - Left Side

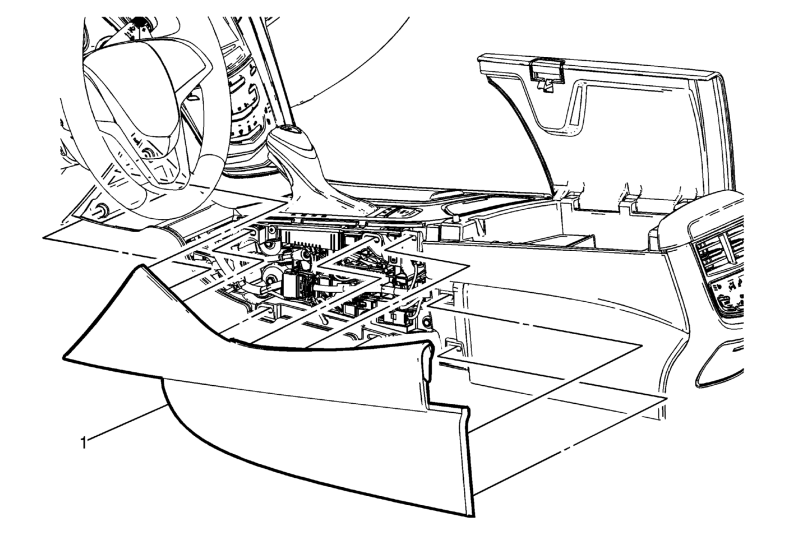

Fig 1: Front Floor Console Side Trim Panel - Left Side
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Front Floor Console Side Trim Panel - Left Side
Procedures
Move the driver seat rearward.
Use a flat-bladed plastic trim tool to release the trim panel from the console.
