Hood Primary and Secondary Latch Replacement

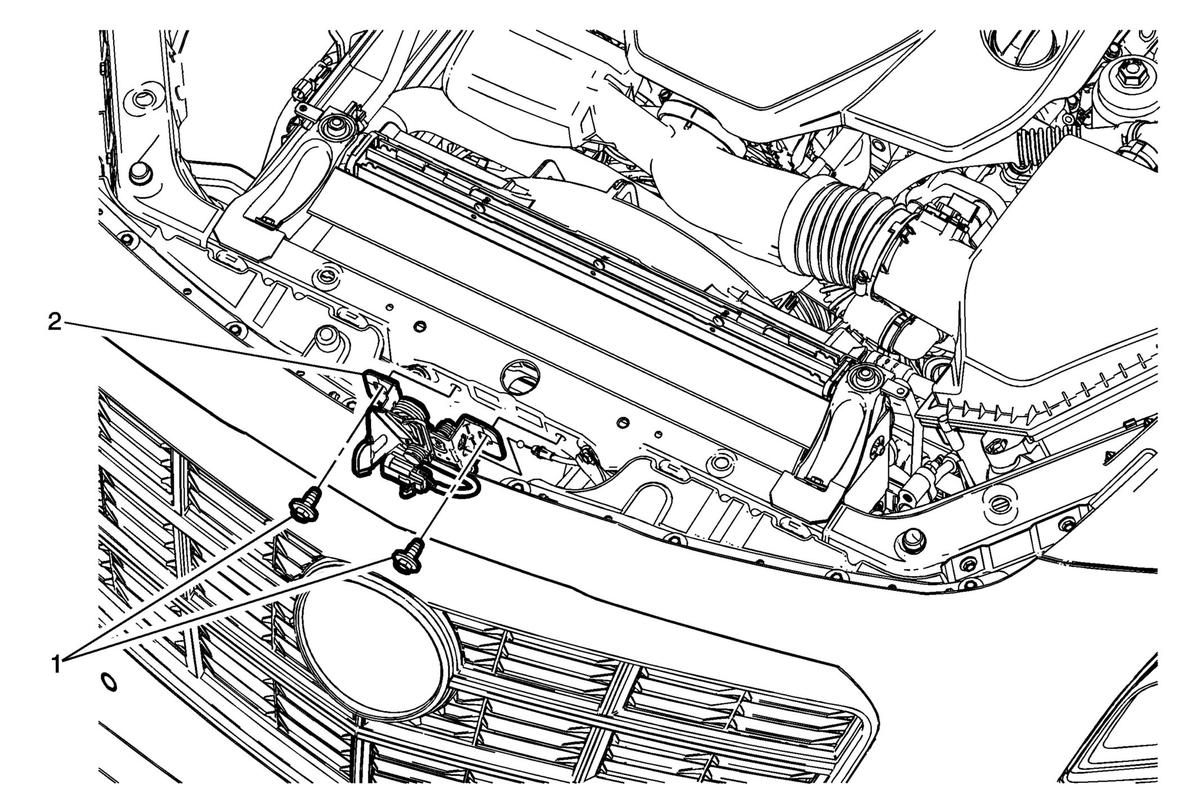

Fig 1: Hood Primary and Secondary Latch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement .
1	Hood Primary and Secondary Latch Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Hood Primary and Secondary Latch Procedure Disconnect the release cable from the hood primary latch. Disconnect the electrical connector. Adjust the hood as necessary. Refer to Hood Adjustment .

Callout

Component Name

Preliminary Procedure
Remove the front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement .

Hood Primary and Secondary Latch Bolt (Qty: 2)

CAUTION:

Tighten
22 N.m (16 lb ft)

Hood Primary and Secondary Latch

Procedure
