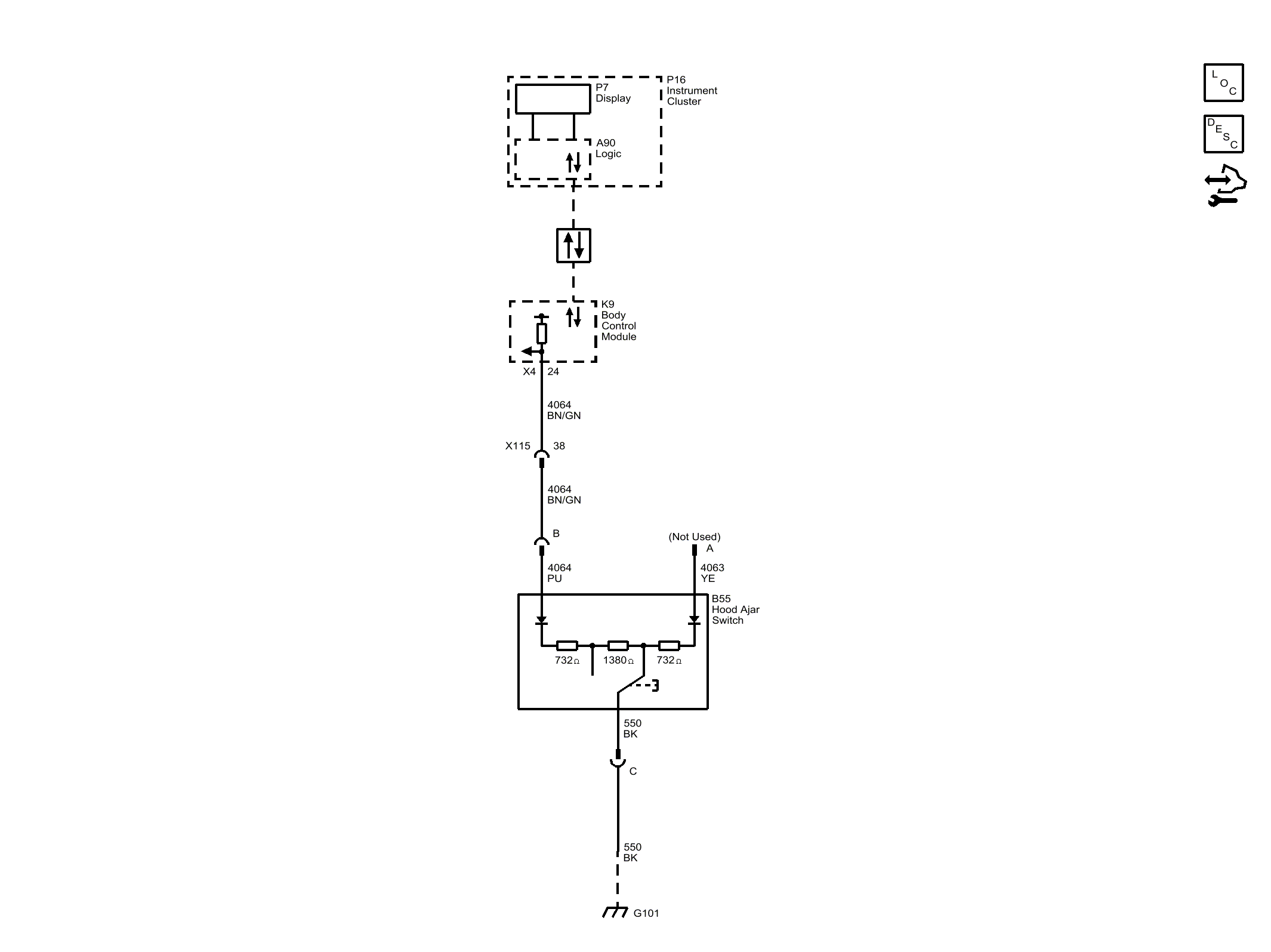

Home >> Cadillac >> 2015 >> CTS Base, RWD >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Exterior Trim >> Bolted Exterior Body Panels And Closures - Sedan >> Schematic Wiring Diagrams >> Hood Latch Wiring Schematics >> Hood Ajar Switch
