Front End Sheet Metal Cross Brace Replacement

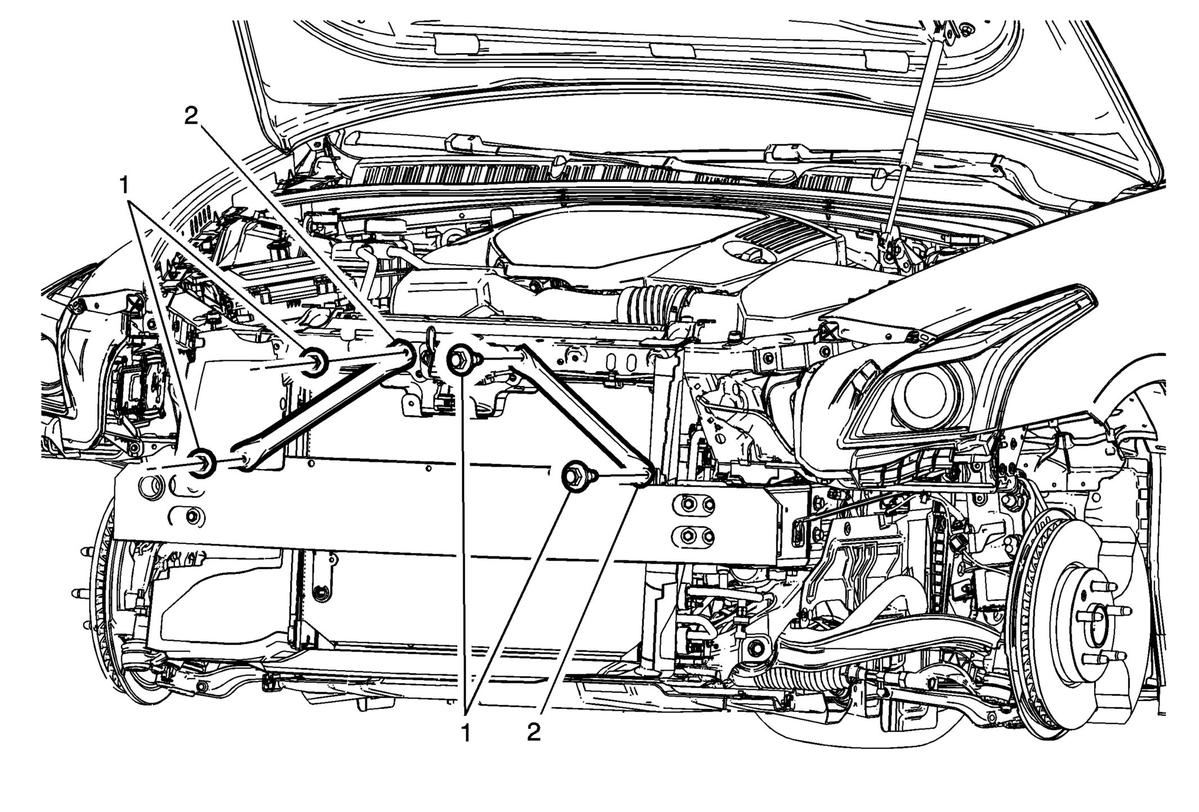

Fig 1: Front End Sheet Metal Cross Brace
GM3444849Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement
1 Front End Sheet Metal Cross Brace Bolt - to Impact Bar (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Front End Sheet Metal Cross Brace (Qty: 2)
