Engine Harness Routing - Right Front (LTG)

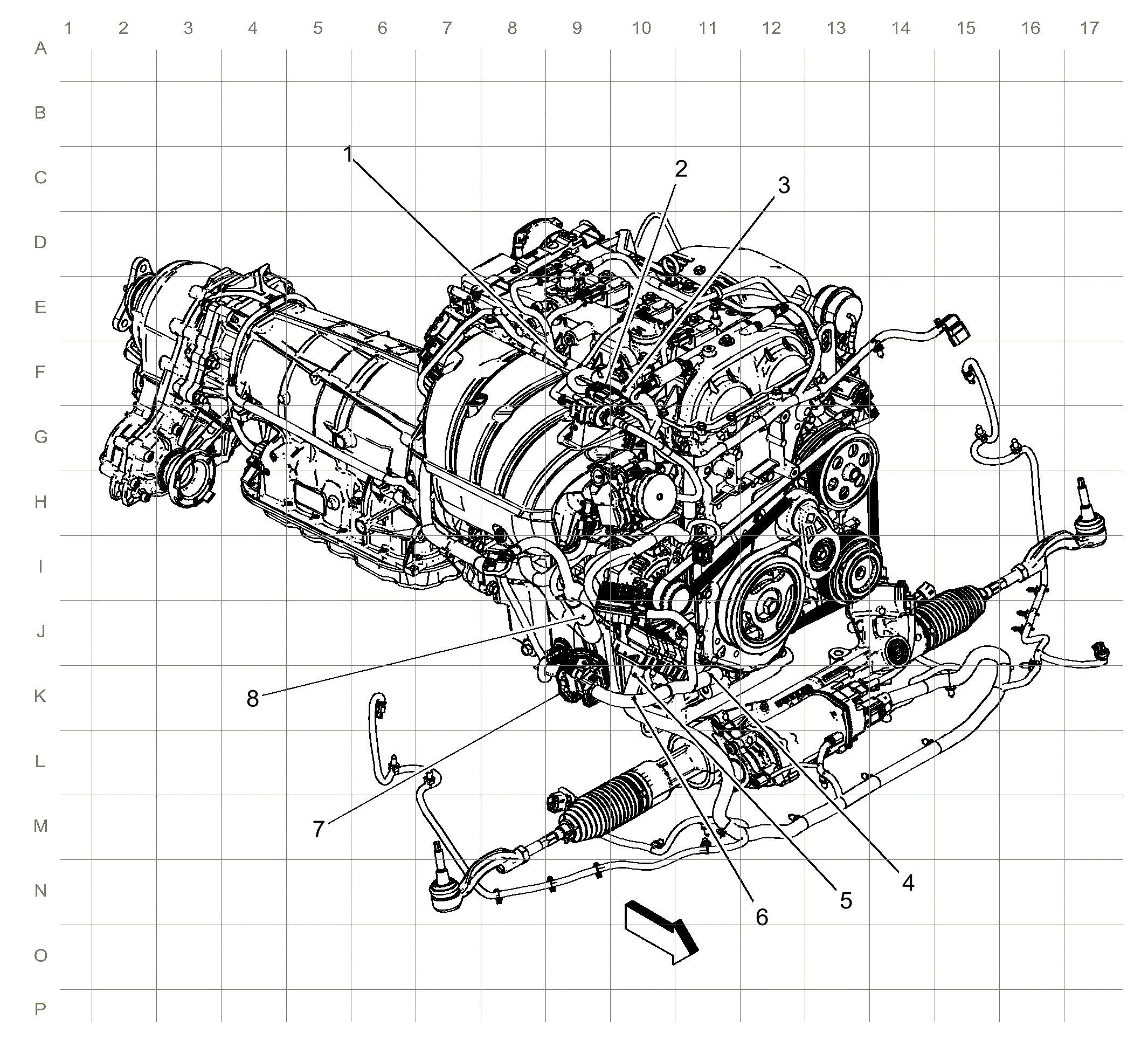

Fig 1: Engine Harness Routing - Right Front (LTG)
GM3454825Courtesy of GENERAL MOTORS COMPANY
Items
1:J137
2:X160 X160 Engine Harness to Fuel Rail Harness (LTG)
3:J132
4:J139
5:J130 (LTG)
6:J141
7:X150
8:J140
