Engine Harness Routing - Right Front (LF3)

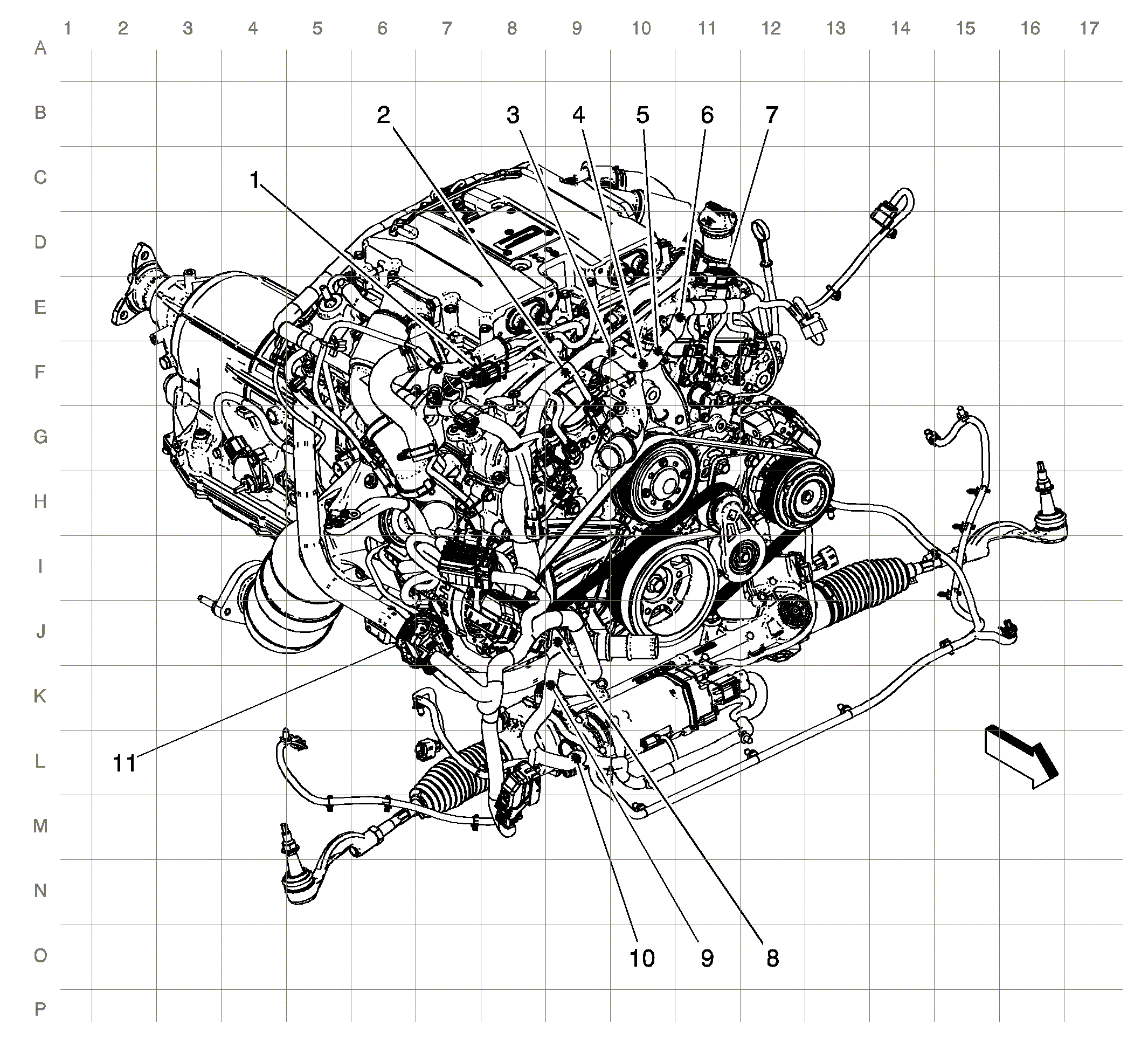

Fig 1: Engine Harness Routing - Right Front (LF3)
GM3454814Courtesy of GENERAL MOTORS COMPANY
Items
1:X164 (LF3) X164 Engine Harness to Throttle Body Harness
2:J137
3:J141
4:J136 (LF3)
5:J140
6:J138
7:X168 (LF3) X168 Engine Harness to Knock Sensor Harness
8:J132
9:J131
10:J134 (LF3)
11:X150 X150 Body Harness to Engine Harness (LF3)
