Body and Forward Lamp Harness Routing - Right Side of Engine Compartment

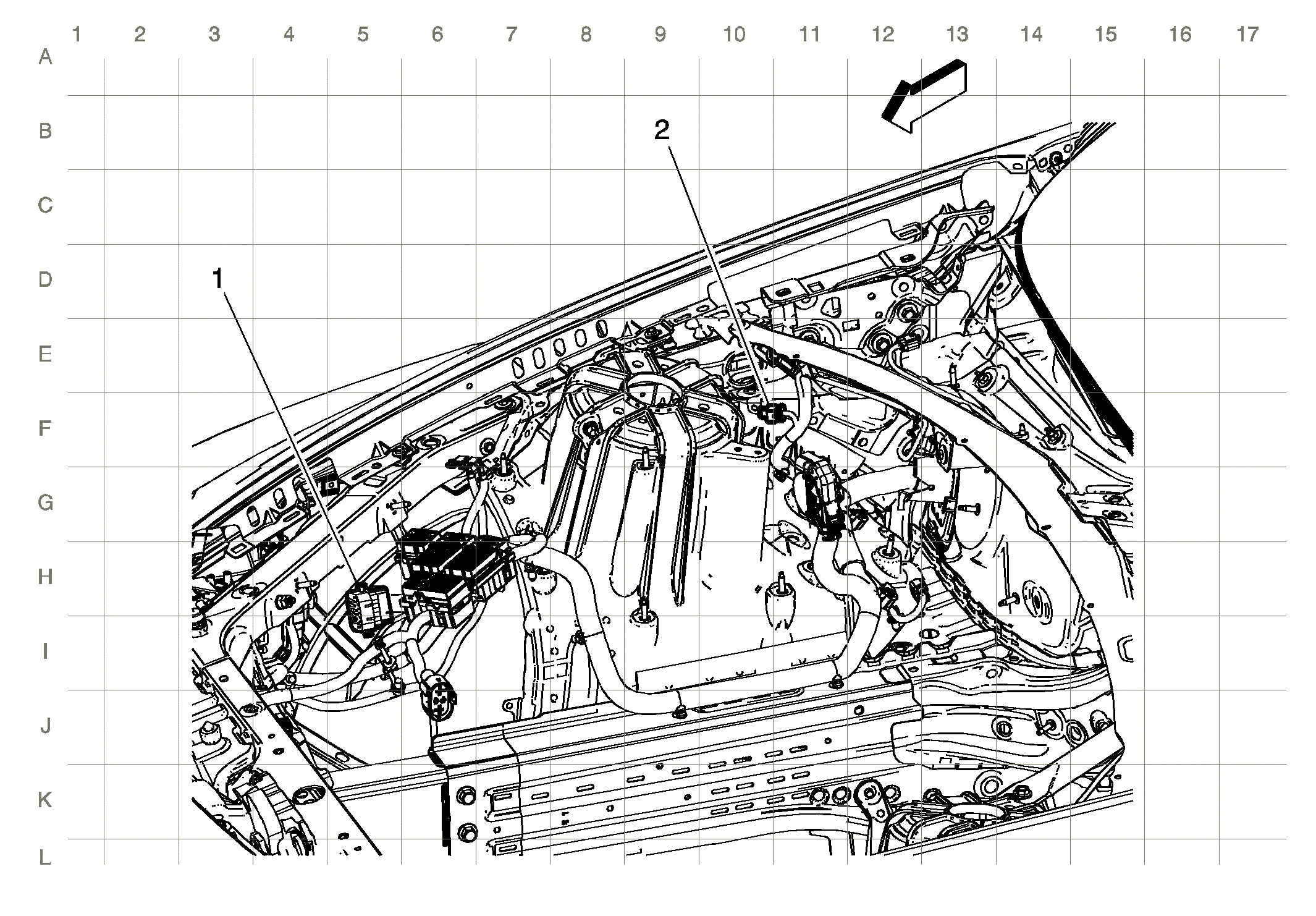

Fig 1: Body And Forward Lamp Harness Routing - Right Side Of Engine Compartment
GM3454810Courtesy of GENERAL MOTORS COMPANY
Items
1:X150 X150 Body Harness to Engine Harness (LF3)X150 Body Harness to Engine Harness (LFX)X150 Body Harness to Engine Harness
2:X118 (B3T) X118 Body Harness to Right Hood Hinge Harness
