Body and Forward Lamp Harness Routing - Left Side of Engine Compartment

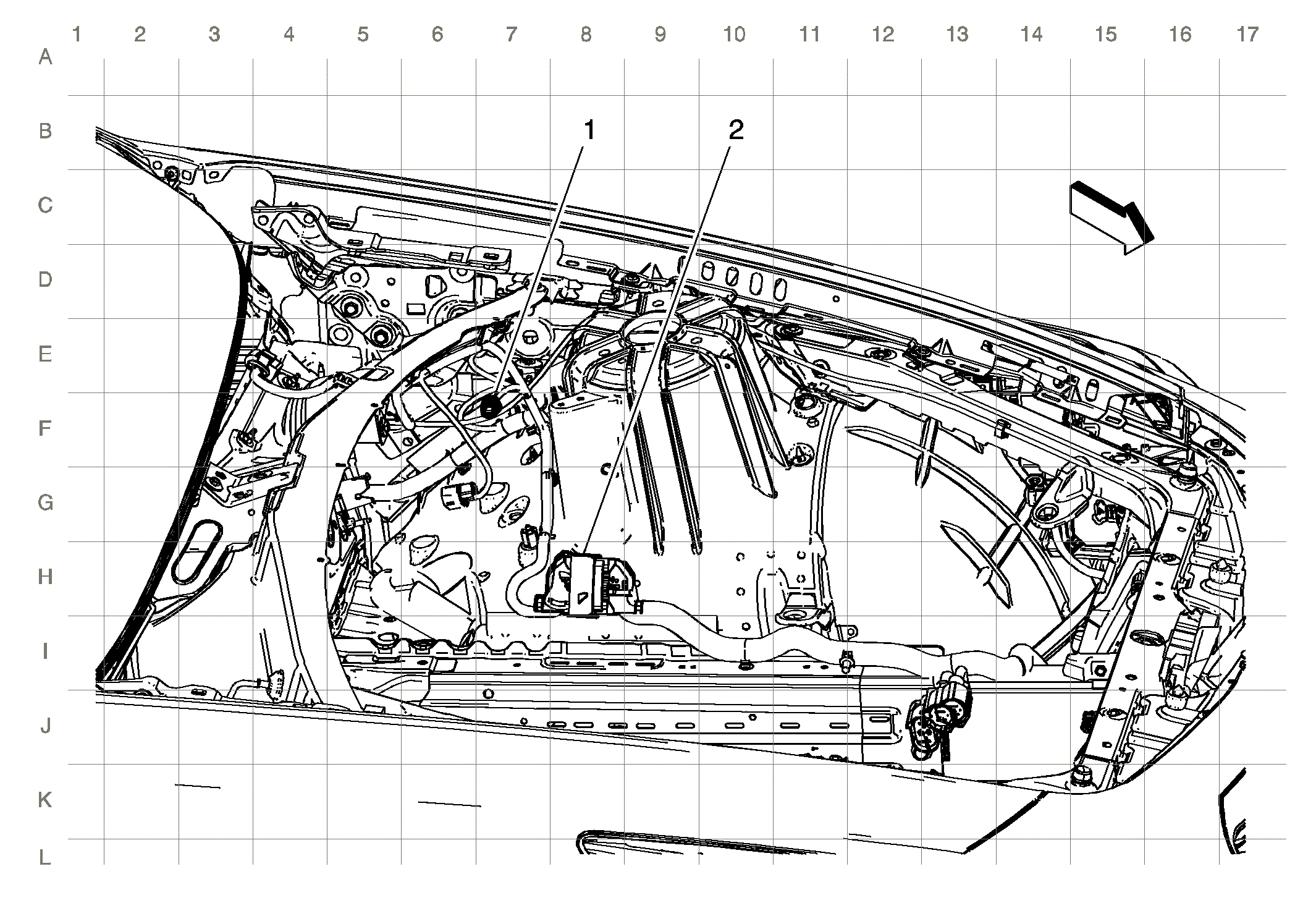

Fig 1: Body And Forward Lamp Harness Routing - Left Side Of Engine Compartment
GM3454809Courtesy of GENERAL MOTORS COMPANY
Items
1:X117 (B3T) X117 Body Harness to Left Hood Hinge Harness
2:X115 X115 Body Harness to Forward Lamp Harness
