Front Floor Rear Console Side Trim Panel Replacement - Left Side

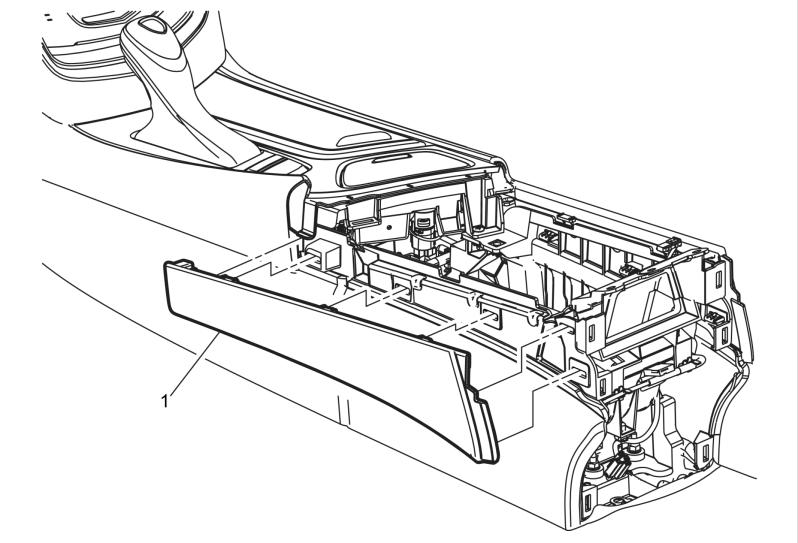

Fig 1: Front Floor Rear Console Side Trim Panel - Left Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front floor console compartment. Refer to Front Floor Console Compartment Replacement .
1	Front Floor Rear Console Side Trim Panel - Left Side Procedures Position the driver seat as necessary to access the panel. Use a flat-bladed plastic trim tool to remove the trim panel from the console.

Callout

Component Name

Preliminary Procedure
Remove the front floor console compartment. Refer to Front Floor Console Compartment Replacement .

Front Floor Rear Console Side Trim Panel - Left Side

Procedures
