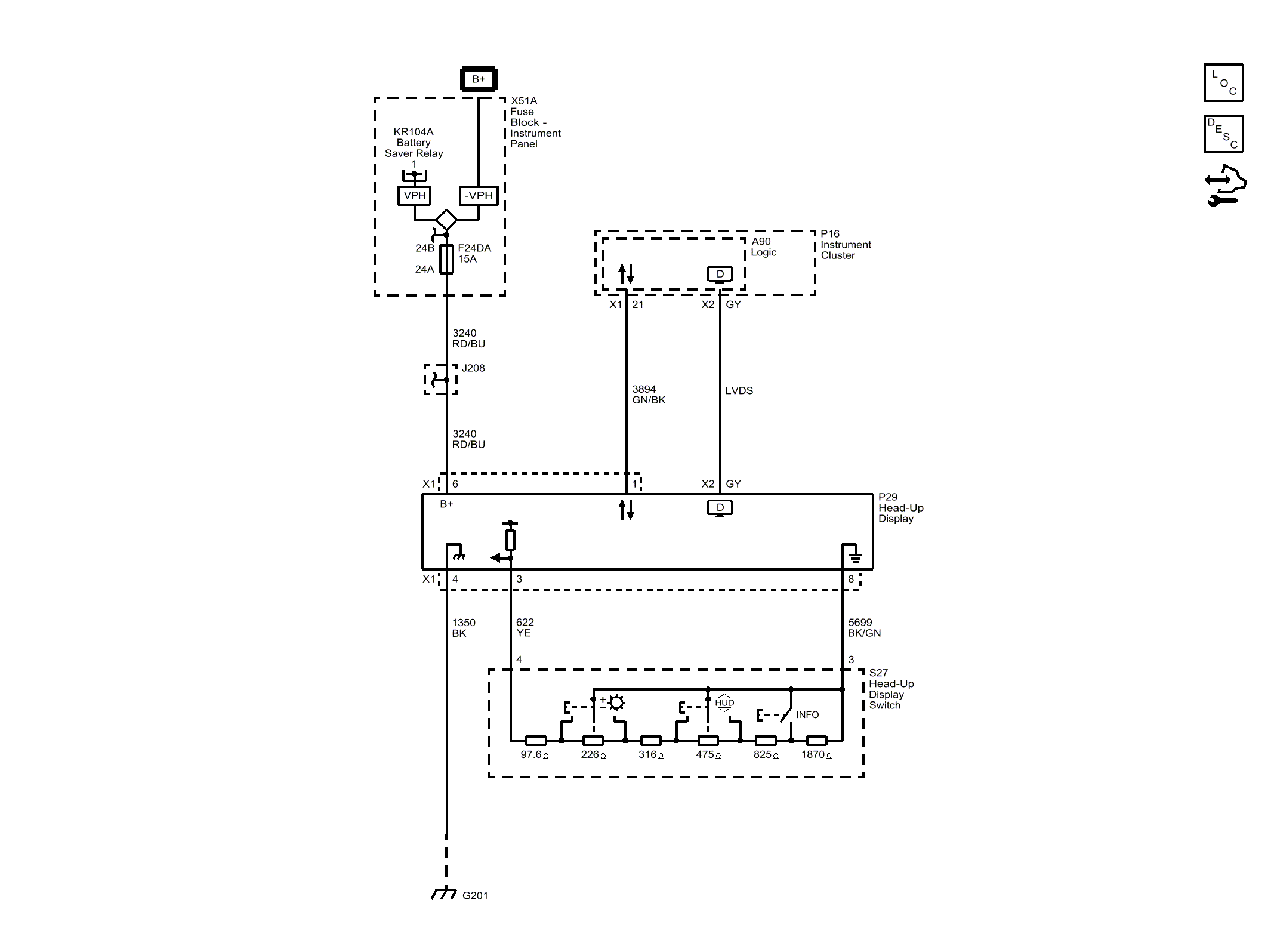

Home >> Cadillac >> 2015 >> CTS Base, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel System Displays And Gauges (Sedan) >> Schematic Wiring Diagrams >> Head-Up Display Schematics >> Head-Up Display (UV6)
