Air Cleaner Outlet Resonator Replacement (LF3)

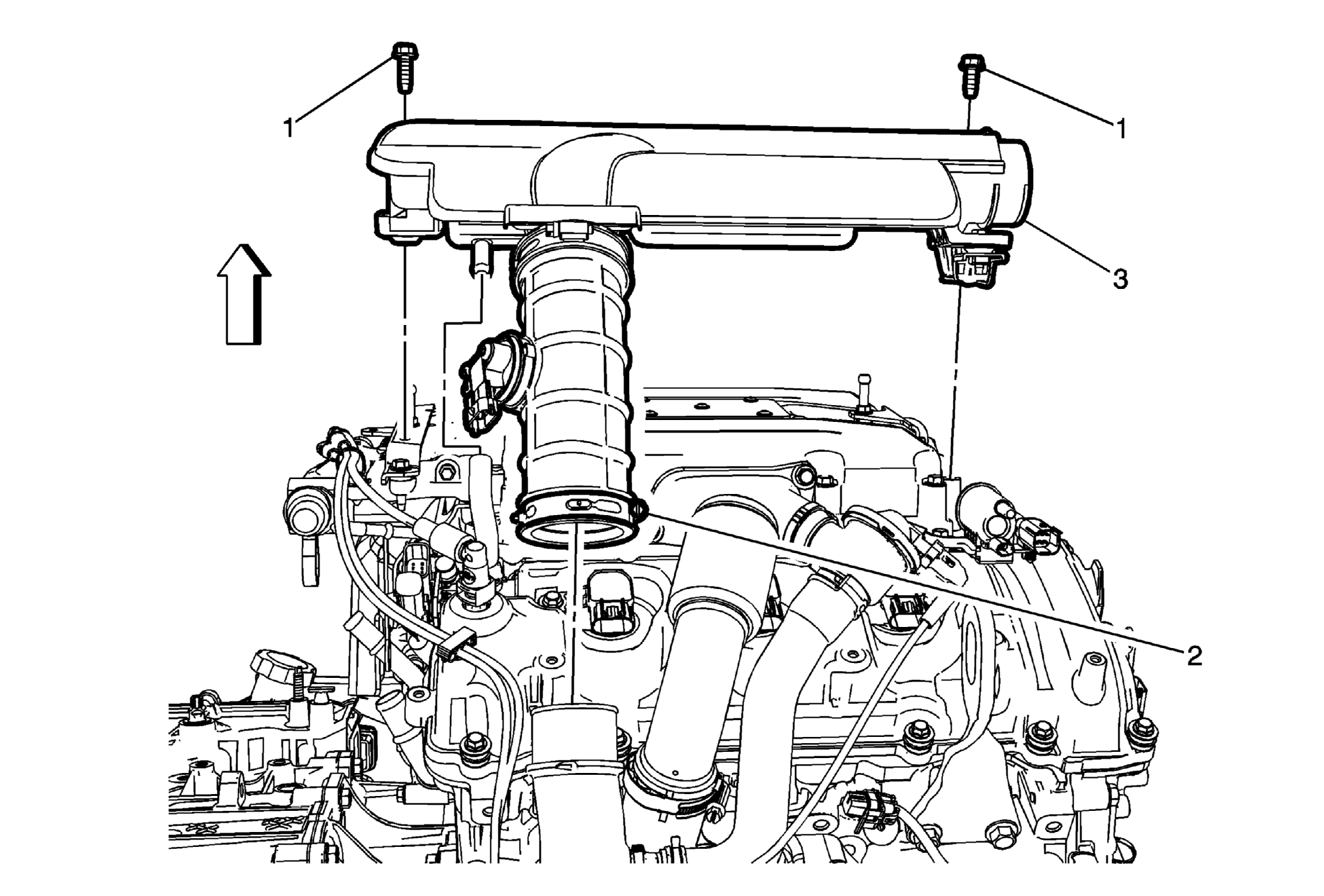

Fig 1: Air Cleaner Outlet Resonator (LF3)
GM3336549Courtesy of GENERAL MOTORS COMPANY
Air Cleaner Outlet Resonator Replacement (LF3)

Callout Component Name

Preliminary Procedures

  1. Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement (LF3) .
  2. Disconnect the PCV tube from air cleaner outlet resonator.
1 Air Cleaner Outlet Resonator Bolts (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
9 (80 lb in)
2 Air Cleaner Outlet Resonator Clamp
3 Air Cleaner Outlet Resonator
Procedure
Disconnect the intake air pressure and temperature sensor electrical connector.
