Secondary Air Injection Pump Replacement (LFX)

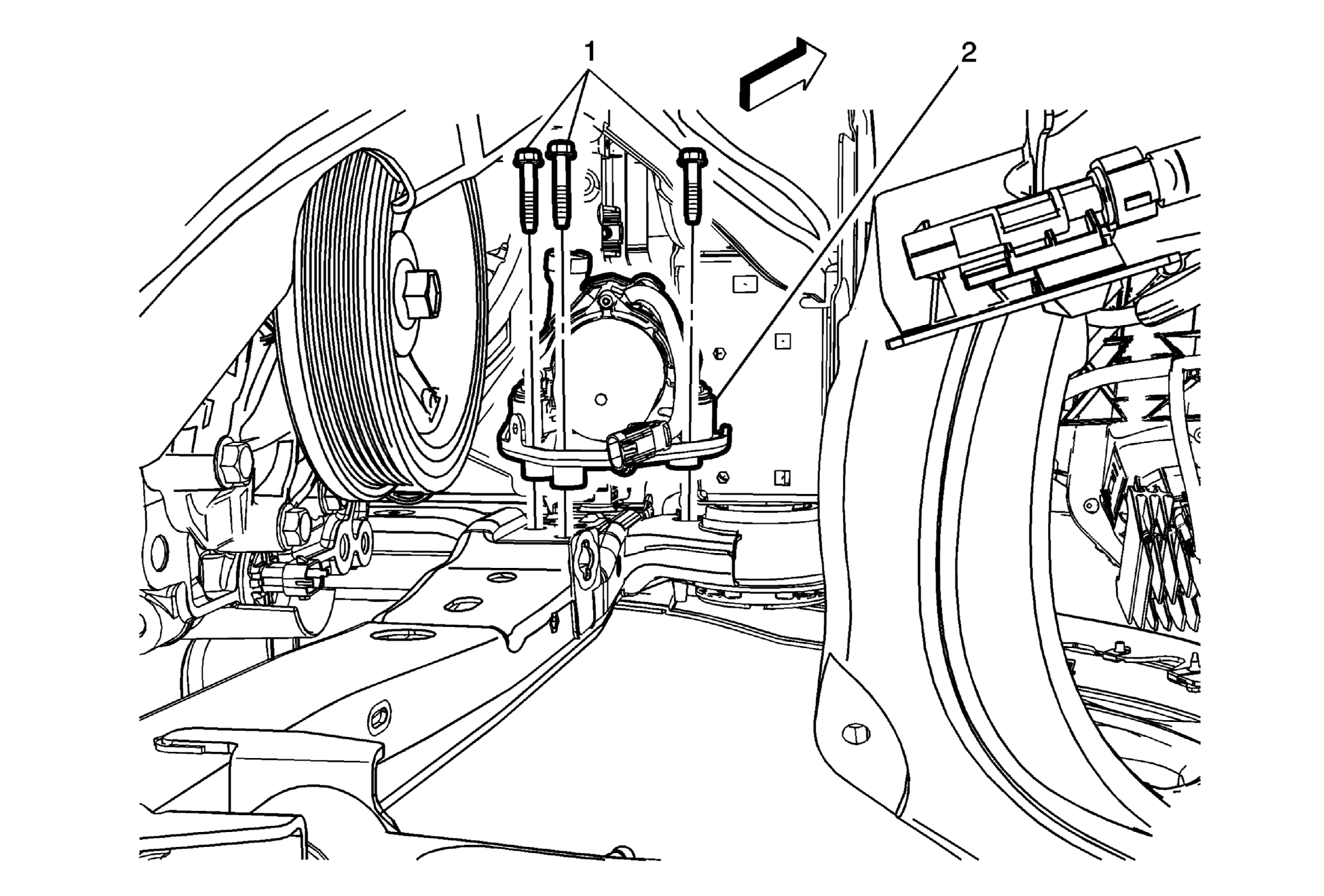

Fig 1: Secondary Air Injection Pump (LFX)
GM3287262Courtesy of GENERAL MOTORS COMPANY
Secondary Air Injection Pump Replacement (LFX)

Callout Component Name

Preliminary Procedures

  1. Remove the front wheelhouse front liner. Refer to Front Wheelhouse Front Liner Replacement .
  2. Remove the secondary air injection pipe. Refer to Secondary Air Injection Pipe Replacement (LFX) .
  3. Remove the secondary air injection pump inlet hose. Refer to Secondary Air Injection Pump Inlet Hose Replacement (LFX) .
1 Secondary Air Injection Pump Bolts (Qty: 3).
CAUTION:

Refer to Fastener Caution .


Tighten
9 (80 lb in)
2 Secondary Air Injection Pump.
Procedure
Disconnect the secondary air injection pump electrical connector.
