Secondary Air Injection Check Valve Pipe Replacement (LFX)

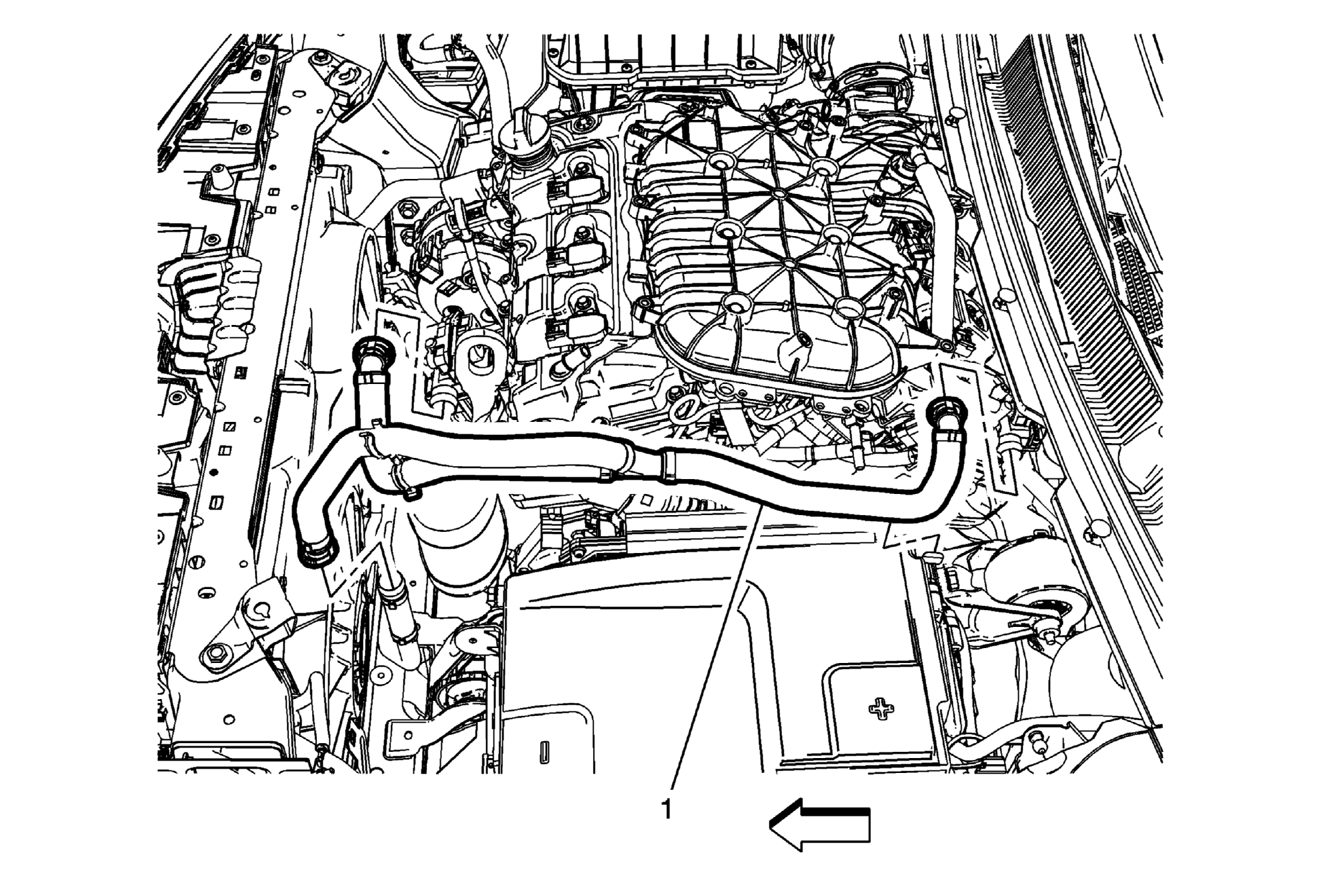

Fig 1: Secondary Air Injection Check Valve Pipe (LFX)
GM3287265Courtesy of GENERAL MOTORS COMPANY
Secondary Air Injection Check Valve Pipe Replacement (LFX)

Callout Component Name

Preliminary Procedures

  1. Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement (LFX) ,.
  2. Remove front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement .
1 Secondary Air Injection Check Valve Pipe
Procedure
Disconnect the quick connect fittings by squeezing both sides.
