Rear Seat Back Bolster Replacement

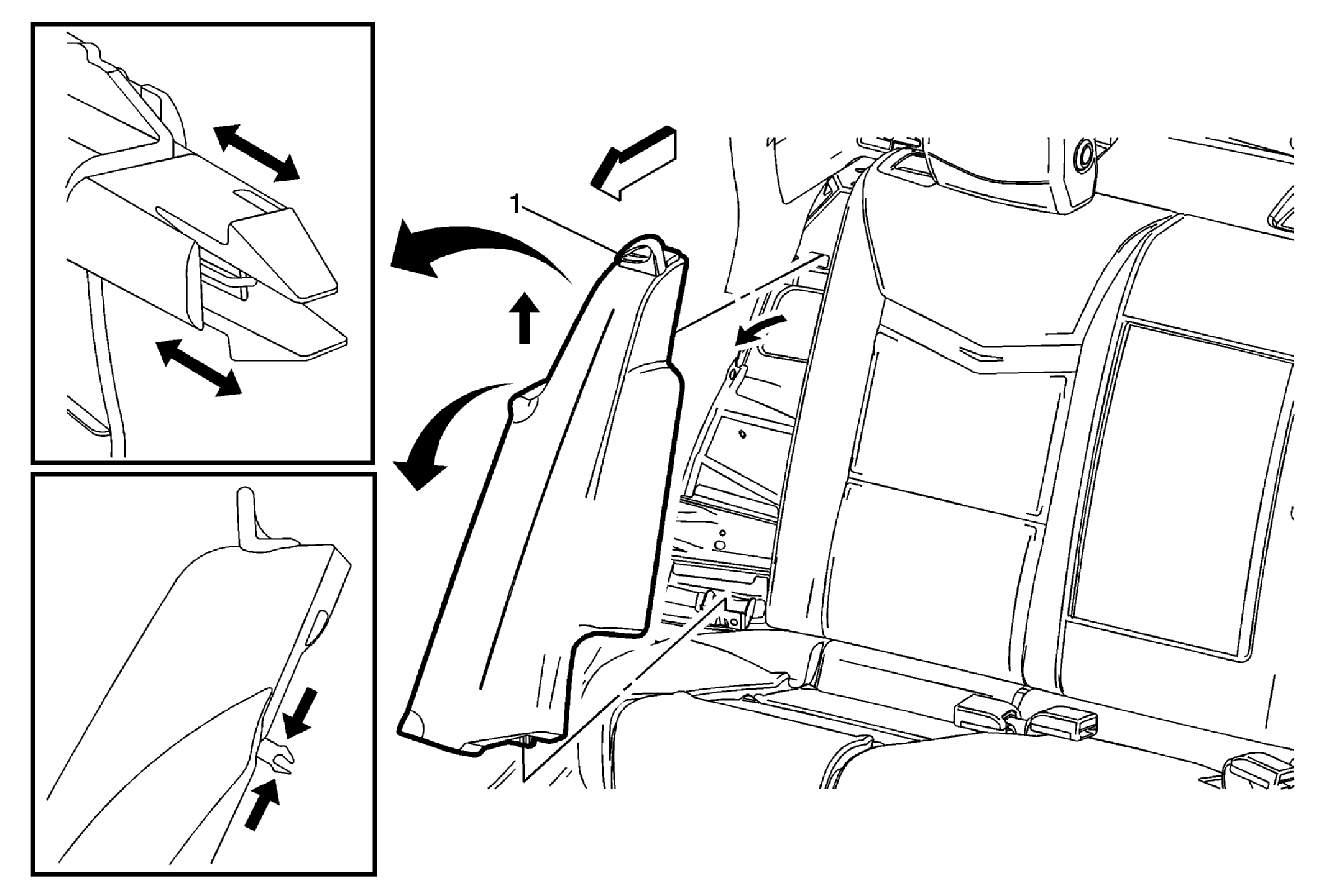

Fig 1: Rear Seat Back Cushion Bolster

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Seat Back Cushion Bolster WARNING: Refer to SIR Warning . WARNING: Do not repair or replace the seat stitching or seams in the seat back trim cover with an internal mounted seat side airbag module. Replace the complete seat back trim cover from the OEM. Non-OEM seat stitching may cause improper airbag deployment which could result in personal injury. Procedure Disable the SIR system. Refer to SIR Disabling and Enabling NOTE: Fold rear seat back cushion down to gain better access to the back of bolster. Unlock and slide the center tab retainer forward on the bolster. With access from I/B side, use pliers to squeeze retention tabs together while pulling rearward on upper bolster to release from sheet metal. Slide the Lock Slider Mechanism forward in vehicle to retract the retaining tab expansion feature. NOTE: Sliding the lock slider mechanism foreword in vehicle releases the retention tabs. Sliding the lock slider mechanism rearward in the vehicle expands the retention tabs. Pull the upper seat back cushion bolster forward. Pull the seat back cushion bolster up. Disconnect the electrical connector. Remove rear seat back cushion bolster. Remove the rear seat side inflatable module. Refer to Rear Seat Outboard Seat Back Airbag Replacement . When installing bolster, slide Lock Slider Mechanism rearward in vehicle to expand the retaining tabs.

Callout

Component Name

Rear Seat Back Cushion Bolster

WARNING:

Refer to SIR Warning .

WARNING:

Do not repair or replace the seat stitching or seams in the seat back trim cover with an internal mounted seat side airbag module. Replace the complete seat back trim cover from the OEM. Non-OEM seat stitching may cause improper airbag deployment which could result in personal injury.

Procedure

Disable the SIR system. Refer to SIR Disabling and Enabling
NOTE:
Fold rear seat back cushion down to gain better access to the back of bolster.
Unlock and slide the center tab retainer forward on the bolster.
With access from I/B side, use pliers to squeeze retention tabs together while pulling rearward on upper bolster to release from sheet metal.
Slide the Lock Slider Mechanism forward in vehicle to retract the retaining tab expansion feature.
NOTE:
Sliding the lock slider mechanism foreword in vehicle releases the retention tabs. Sliding the lock slider mechanism rearward in the vehicle expands the retention tabs.
Pull the upper seat back cushion bolster forward.
Pull the seat back cushion bolster up.
Disconnect the electrical connector.
Remove rear seat back cushion bolster.
Remove the rear seat side inflatable module. Refer to Rear Seat Outboard Seat Back Airbag Replacement .
When installing bolster, slide Lock Slider Mechanism rearward in vehicle to expand the retaining tabs.
