Power, Ground, Serial Data and Fuel Level

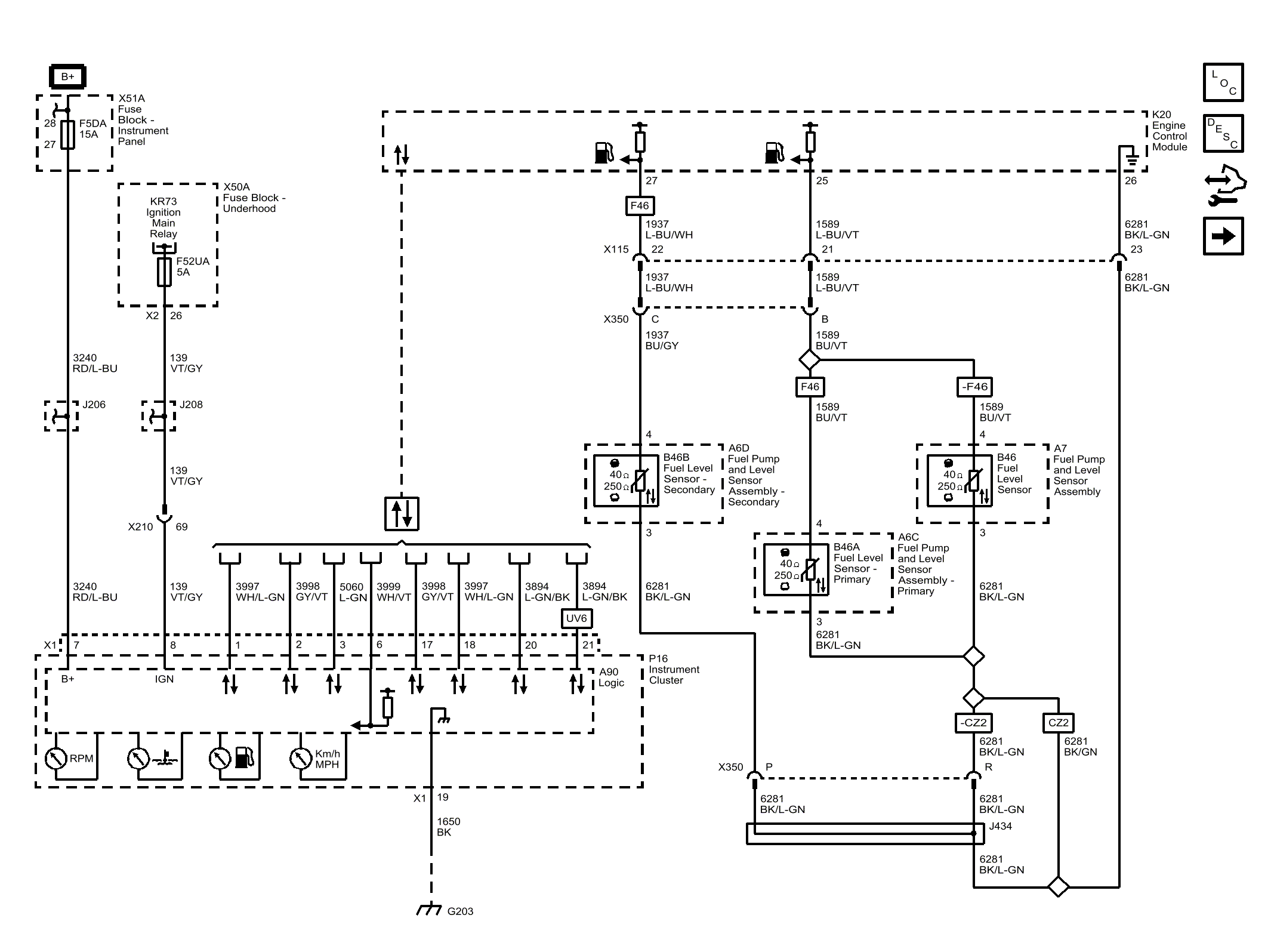

Fig 1: Power, Ground, Serial Data and Fuel Level

GM3253550

Courtesy of GENERAL MOTORS COMPANY
