Hood Primary and Secondary Latch Replacement
Hood Primary and Secondary Latch Replacement

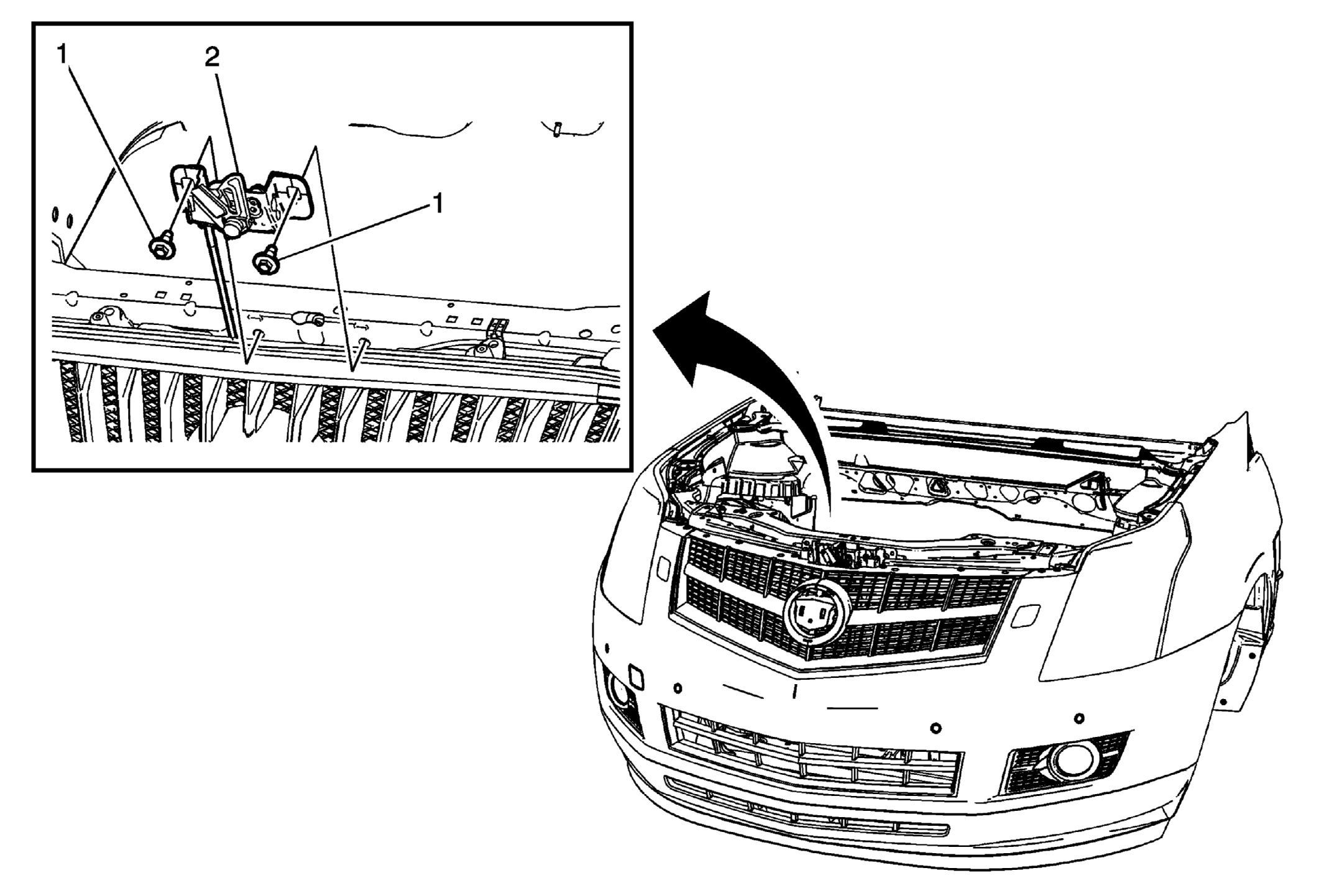

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front compartment front sight shields. Refer to Front Compartment Front Sight Shield Replacement . |
|
| 1 | Hood Primary and Secondary Latch Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 2 | Hood Primary and Secondary Latch Procedure Disconnect the release cable from the hood primary latch. |
