Front Bumper Fascia Upper Support Replacement

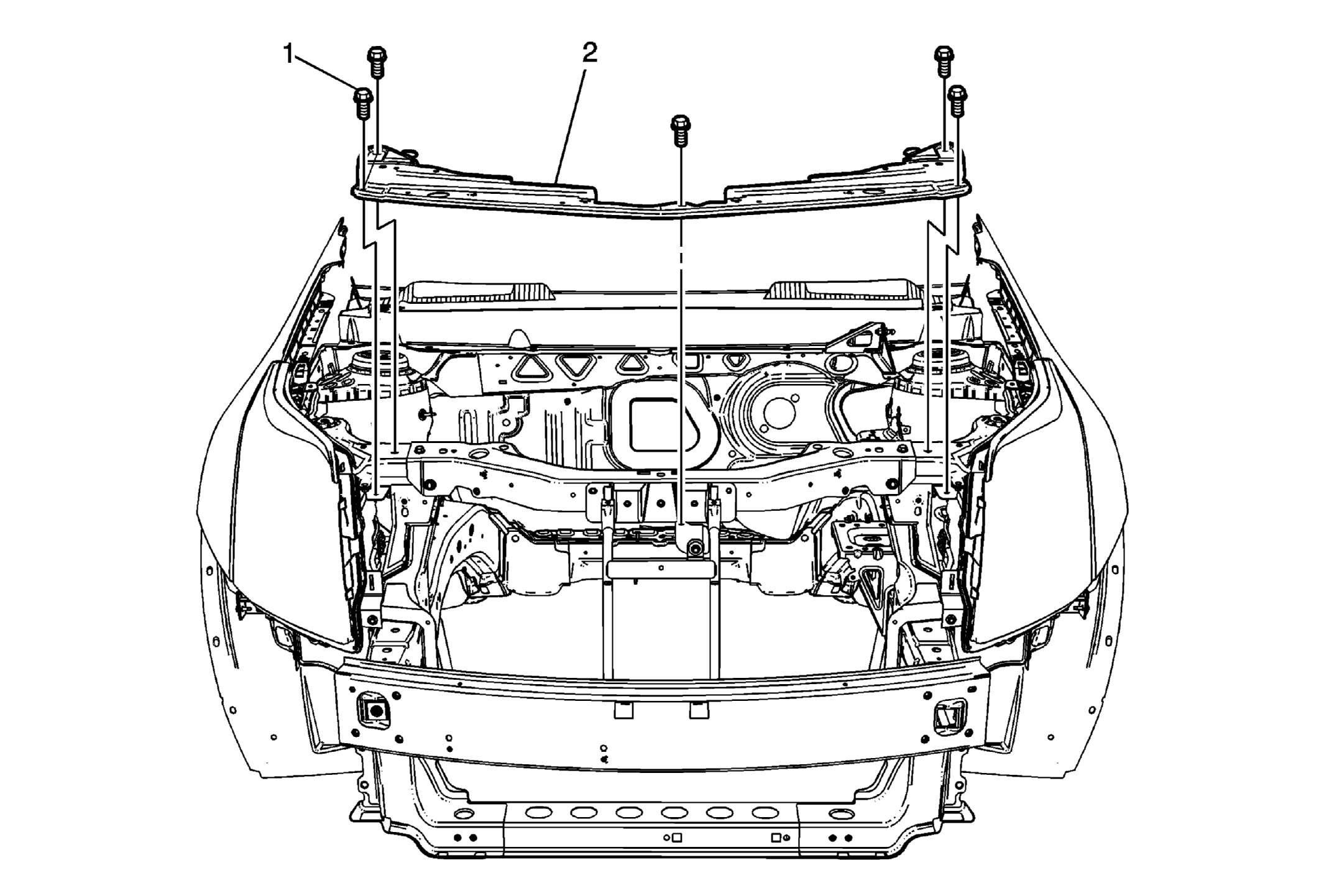

Fig 1: Identifying Front Bumper Fascia Upper Support & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
1	Front Bumper Fascia Upper Support Bolt (Qty: 5) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Front Bumper Fascia Upper Support Procedure Unclip the hood release cable retainer. Slide upward and rearward to clear hood primary latch.

Callout

Component Name

Preliminary Procedure
Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .

Front Bumper Fascia Upper Support Bolt (Qty: 5)

CAUTION:

Tighten
10 N.m (89 lb in)

Front Bumper Fascia Upper Support

Procedure
