Liftgate Wedge Replacement - Body Side
Liftgate Wedge Replacement - Body Side

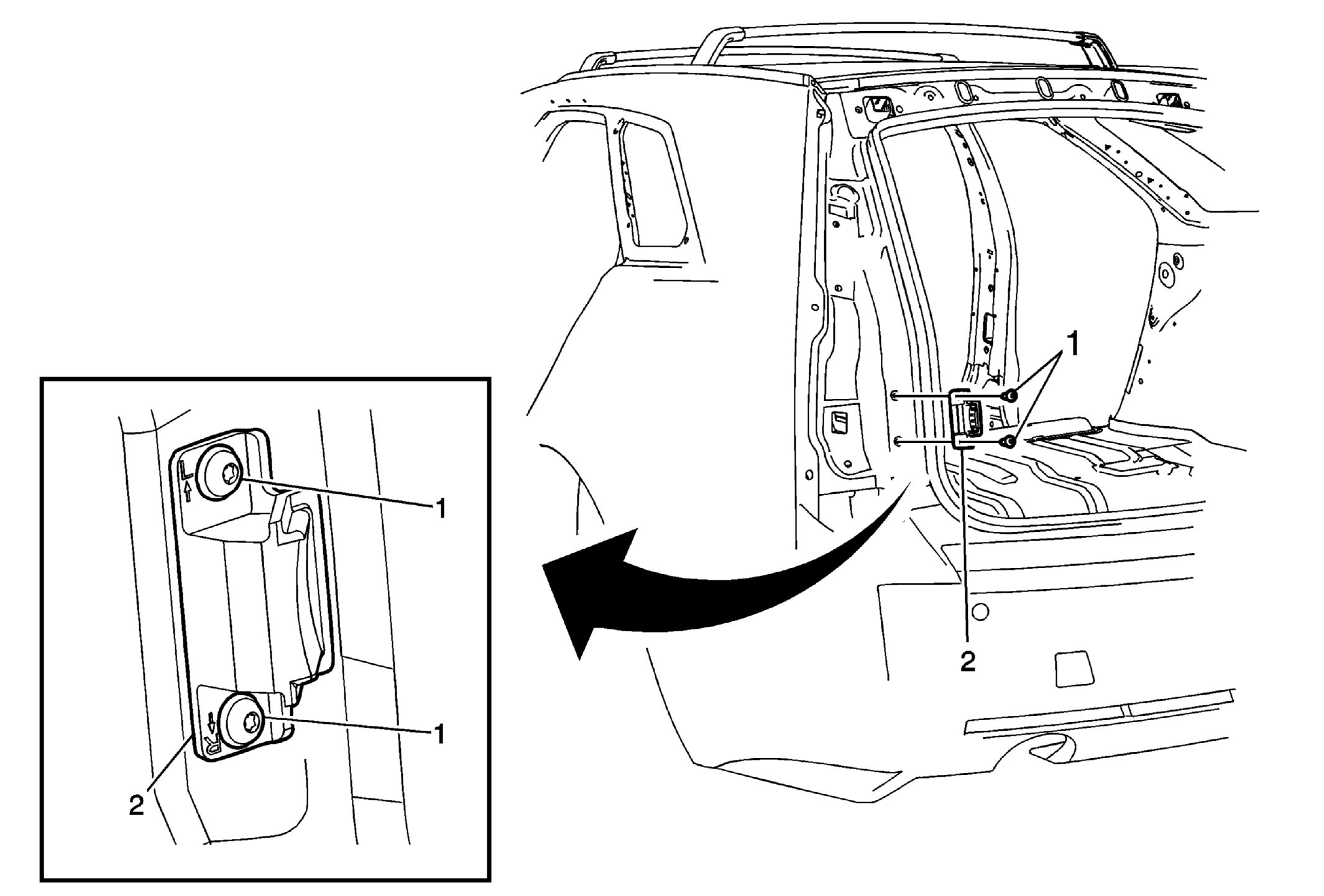

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the tail lamp filler panel only. Refer to Tail Lamp Replacement . |
|
| 1 | Liftgate Wedge Retainer (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 7 N.m (62 lb in) |
| 2 | Liftgate Wedge TIP: The liftgate wedge will fit the right of left side. |
