Hood Hinge Replacement

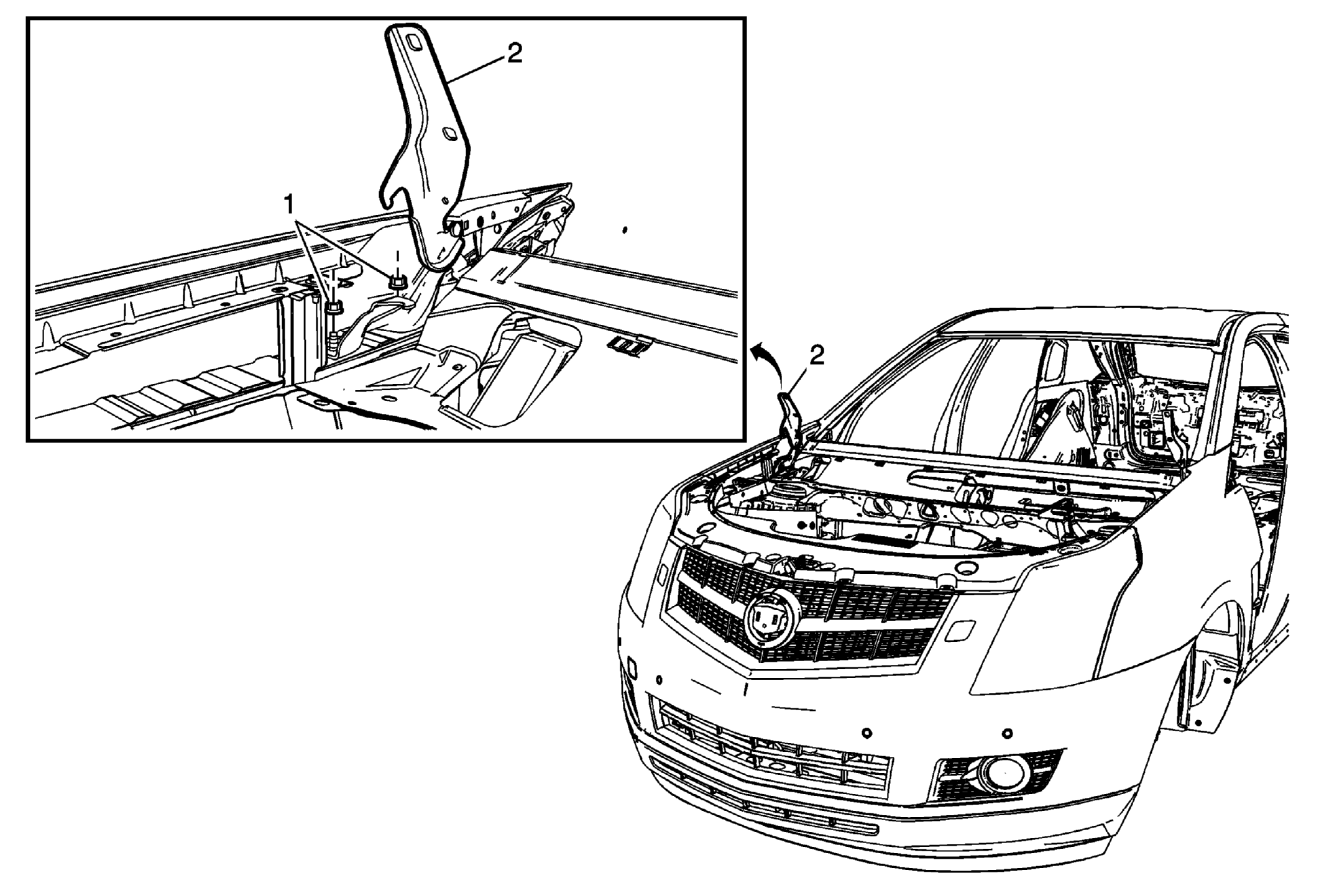

Fig 1: View Of Hood Hinge & Nuts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the hood. Refer to Hood Replacement . Remove the air inlet grille panel side sear. Refer to Air Inlet Grille Panel Extension Replacement .
1	Hood Hinge Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Mark the location of the hinge to the hood and upper rail with a grease pencil to aid in alignment. Tighten 25 N.m (18 lb ft)
2	Hood Hinge

Callout

Component Name

Preliminary Procedures

Remove the hood. Refer to Hood Replacement .
Remove the air inlet grille panel side sear. Refer to Air Inlet Grille Panel Extension Replacement .

Hood Hinge Nut (Qty: 2)

CAUTION:

Procedure
Mark the location of the hinge to the hood and upper rail with a grease pencil to aid in alignment.
Tighten
25 N.m (18 lb ft)

Hood Hinge
