Hood Front Seal Replacement

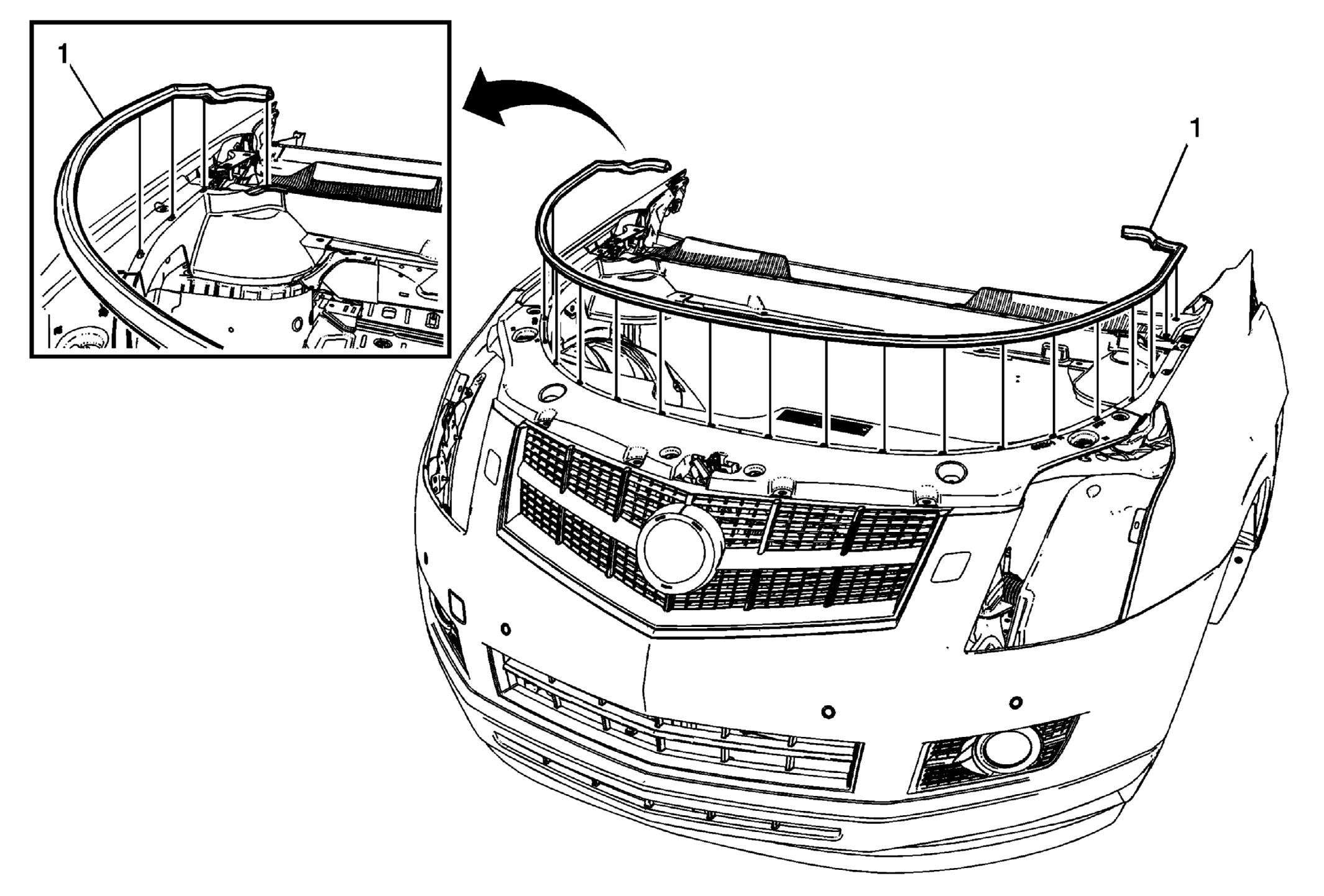

Fig 1: View Of Hood Front Seal
GM2223303Courtesy of GENERAL MOTORS COMPANY
Hood Front Seal Replacement

Callout Component Name
1 Hood Front Seal
Procedure
The hood front weatherstrip is held in place with 20 plastic retainers that are part of the weatherstrip. Carefully pull the weatherstrip to the right/left to release from the retainers on the sight shield.
