Fuel Tank Filler Valve Housing Replacement

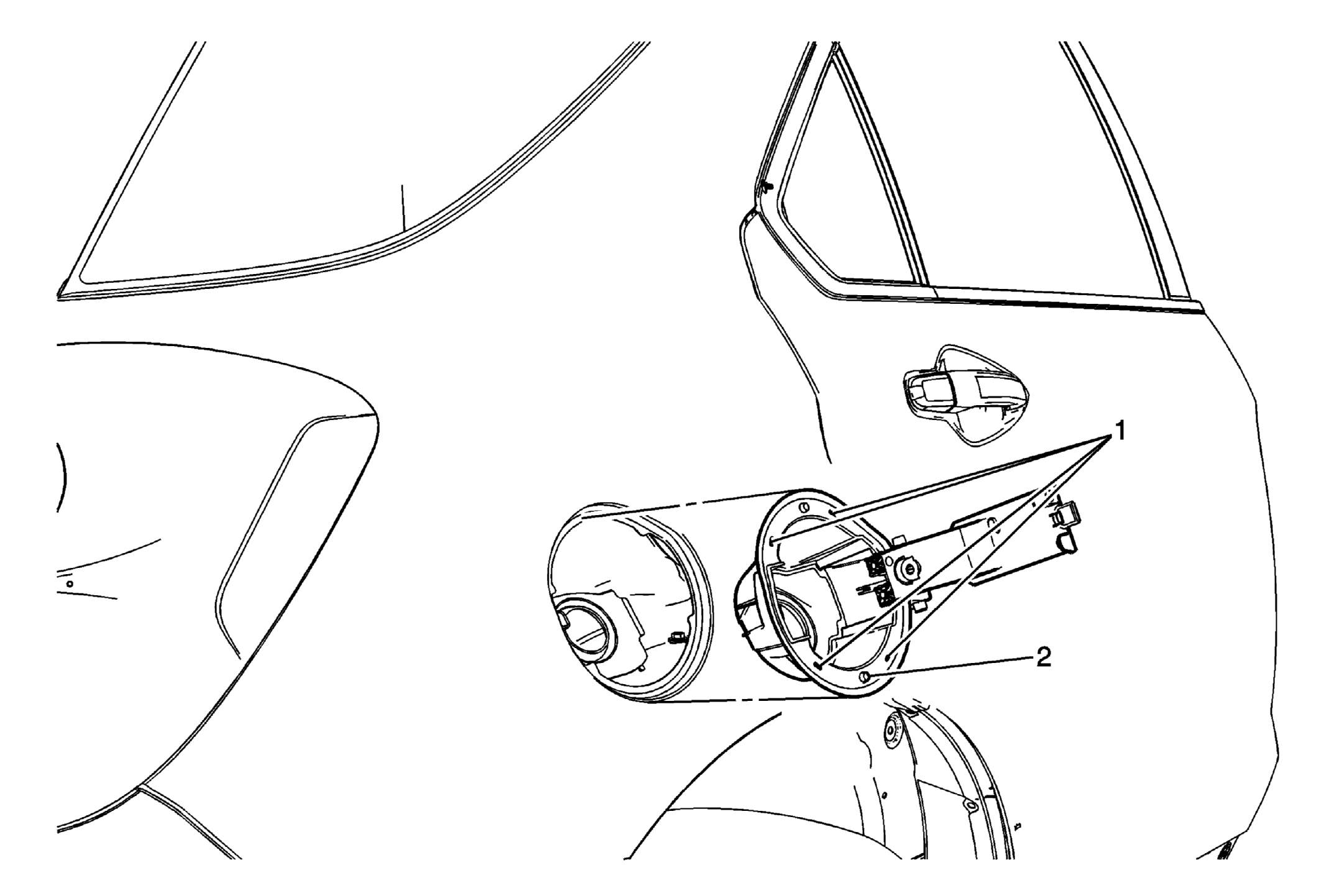

Fig 1: Identifying Fuel Tank Filler Valve Housing (Equinox)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear wheelhouse panel liner. Refer to Rear Wheelhouse Liner Replacement . Remove the fuel tank filler door. Refer to Fuel Tank Filler Door Replacement .
1	Fuel Tank Filler Pipe Housing Retainer (Qty: 4) Procedure Release the 4 filler pipe housing retainers on the back of the housing.
2	Fuel Tank Filler Pipe Housing Procedure Press the fuel tank filler housing outward from the fuel filler pipe and the quarter panel.

Callout

Component Name

Preliminary Procedures

Remove the rear wheelhouse panel liner. Refer to Rear Wheelhouse Liner Replacement .
Remove the fuel tank filler door. Refer to Fuel Tank Filler Door Replacement .

Fuel Tank Filler Pipe Housing Retainer (Qty: 4)
Procedure
Release the 4 filler pipe housing retainers on the back of the housing.

Fuel Tank Filler Pipe Housing
Procedure
Press the fuel tank filler housing outward from the fuel filler pipe and the quarter panel.
