Steering Column Shroud Replacement

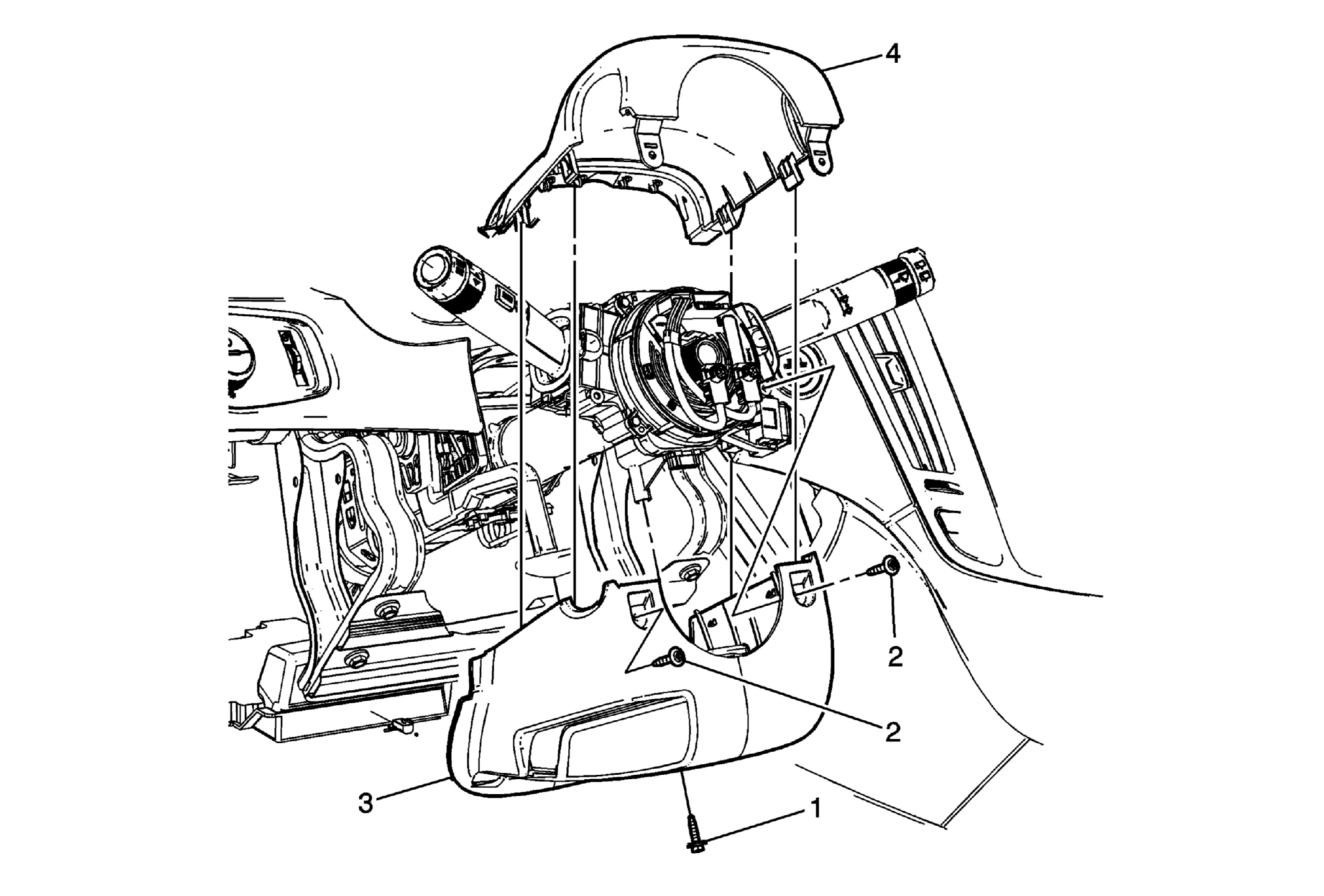

Fig 1: View Of Steering Column Shroud

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Telescope the steering column to the maximum rearward position. Tilt the steering column to the lowest position. Remove the left knee bolster. Refer to Driver Knee Bolster Panel Replacement
1	Steering Column Trim Cover Fastener CAUTION: Refer to Fastener Caution . TIP: Snap the steering column upper shroud and the steering column lower shroud together before installing the fasteners. Tighten 1.5 N.m (13 lb in)
2	Steering Column Trim Cover Fastener (Qty: 2) Procedure Turn the steering wheel in order to access the fasteners. Tighten 1.5 N.m (13 lb in)
3	Steering Column Lower Shroud
4	Steering Column Upper Shroud Procedure Disconnect the steering column upper shroud from the steering column seal.
