Front Seat Outer Adjuster Auxiliary Finish Cover Replacement

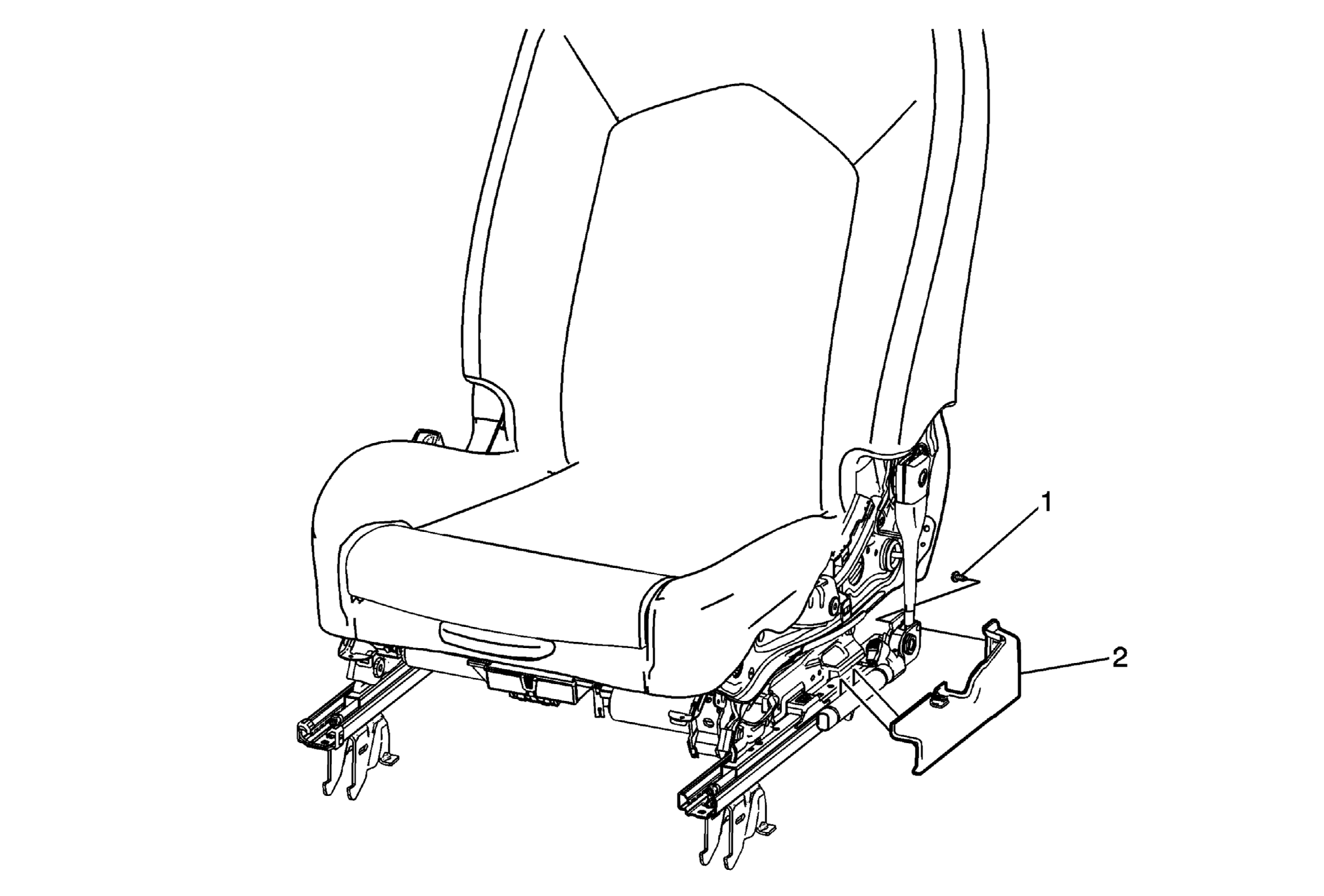

Fig 1: Identifying Front Seat Outer Adjuster Auxiliary Finish Cover & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the driver or passenger seat outer adjuster finish cover. Refer to Driver or Passenger Seat Outer Adjuster Finish Cover Replacement .
1	Front Seat Outer Adjuster Auxiliary Finish Cover Fastener CAUTION: Refer to Fastener Caution
2	Front Seat Outer Adjuster Auxiliary Finish Cover TIP: Use a flat-bladed tool to release the finish cover from the frame track and belt tensioner.
