Instrument Panel Insulator Panel Replacement - Right Side

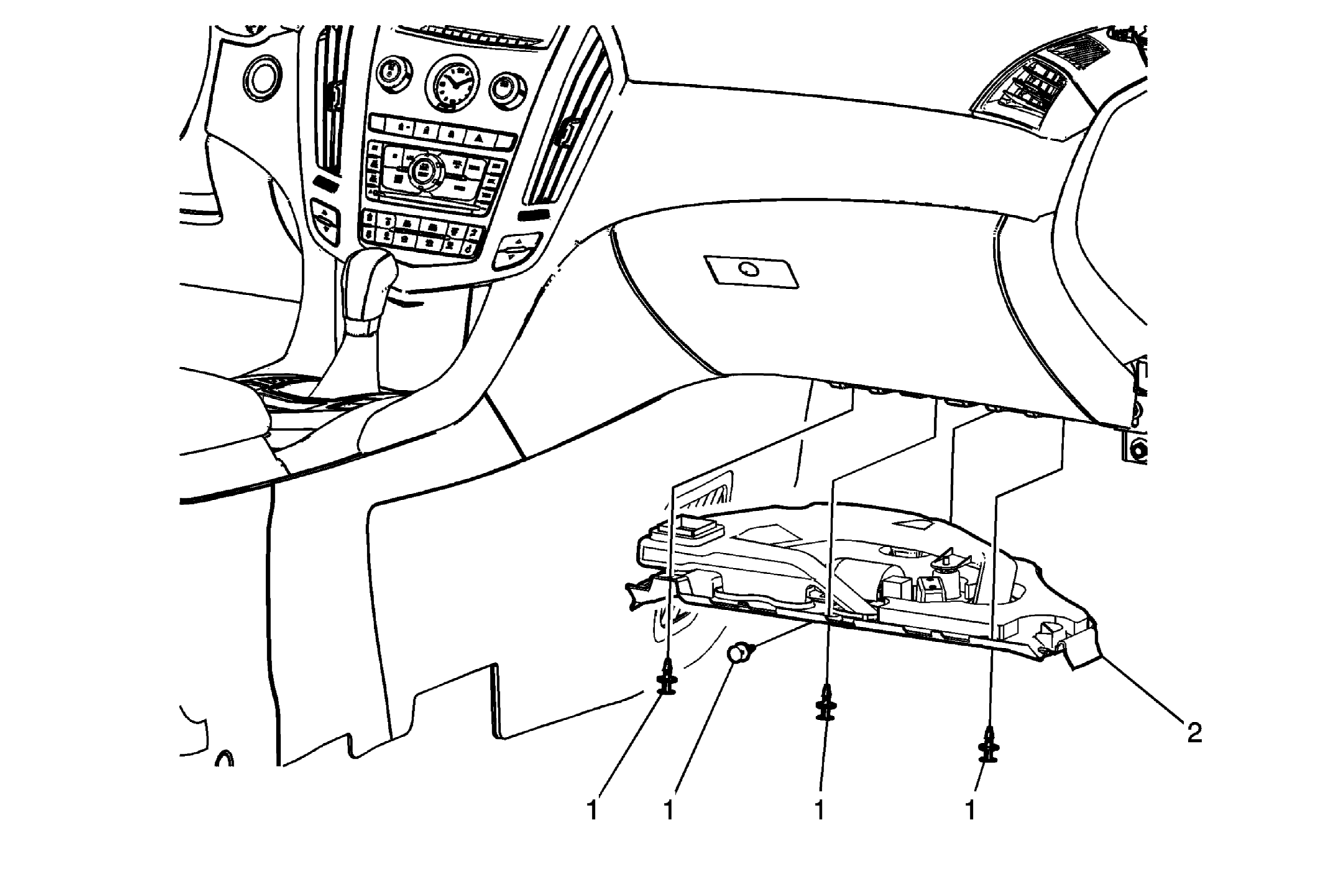

Fig 1: View Of Floor Air Outlet Duct - Right Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Instrument Panel Insulator Panel Retainers (Qty: 4)
2	Instrument Panel Insulator Panel Assembly Procedure Disconnect the electrical connections. When replacing the instrument panel insulator panel, transfer all necessary components. When reinstalling the instrument panel right insulator, ensure the tab located on the right edge of the insulator is engaged behind the right body hinge pillar trim panel.

Callout

Component Name

Instrument Panel Insulator Panel Retainers (Qty: 4)

Instrument Panel Insulator Panel Assembly

Procedure

Disconnect the electrical connections.
When replacing the instrument panel insulator panel, transfer all necessary components.
When reinstalling the instrument panel right insulator, ensure the tab located on the right edge of the insulator is engaged behind the right body hinge pillar trim panel.
