Front Floor Console Rear Trim Panel Replacement - Upper

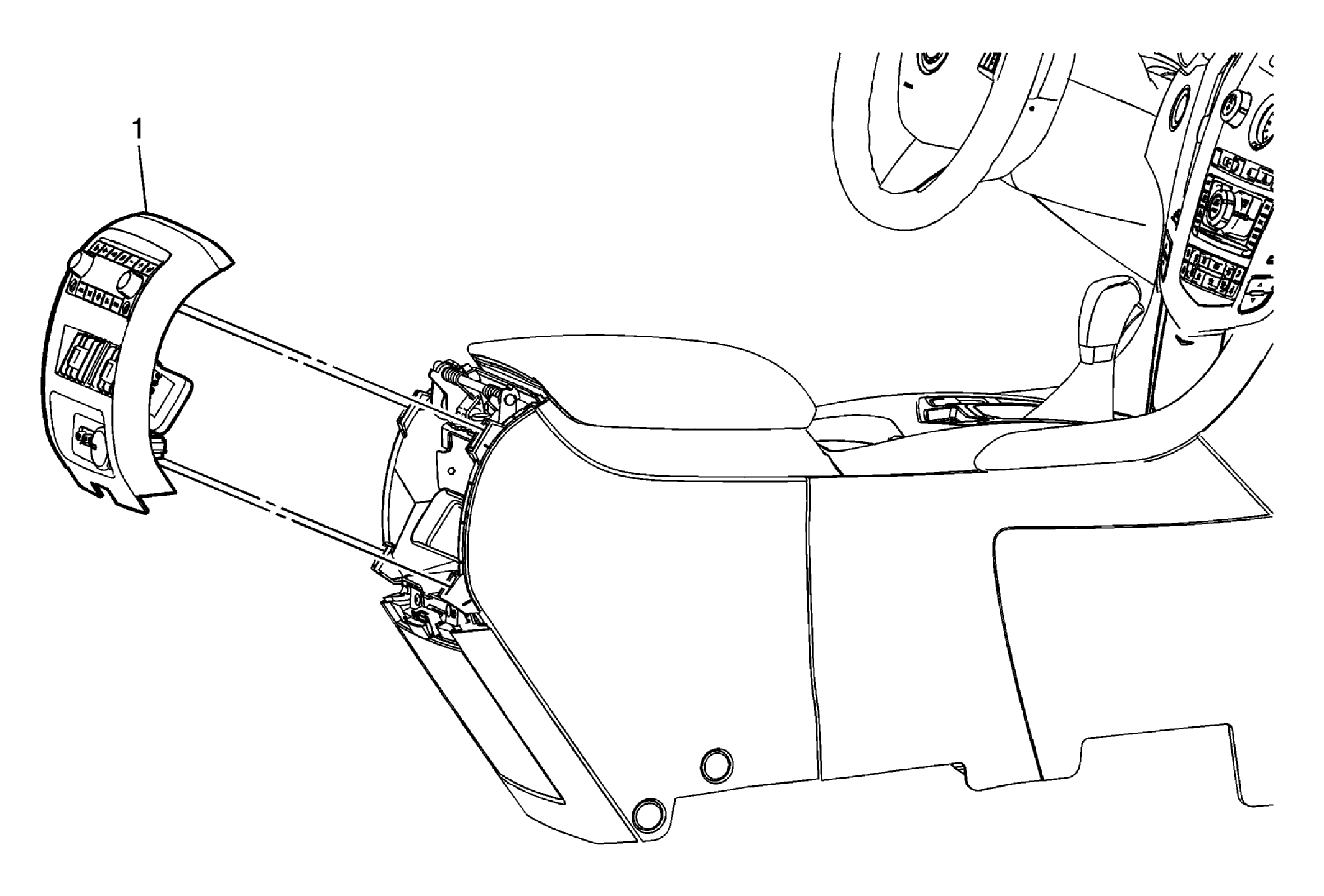

Fig 1: View Of Front Floor Console Rear Trim Panel - Upper
GM2220908Courtesy of GENERAL MOTORS COMPANY
Front Floor Console Rear Trim Panel Replacement - Upper

Callout Component Name
1 Front Floor Console Upper Rear Trim Panel Assembly

Procedure

  1. Grasp the lower edge of the front floor console upper rear trim panel and pull outward just enough to release the lower retainer clips.
  2. While holding the lower edge outward lift upward releasing the upper retainer clips securing the front floor console upper trim panel to the console assembly.
  3. Disconnect the electrical connections.
  4. When replacing the front floor console upper rear trim panel, transfer all necessary components.
