Windshield Washer With Seal Pump Replacement

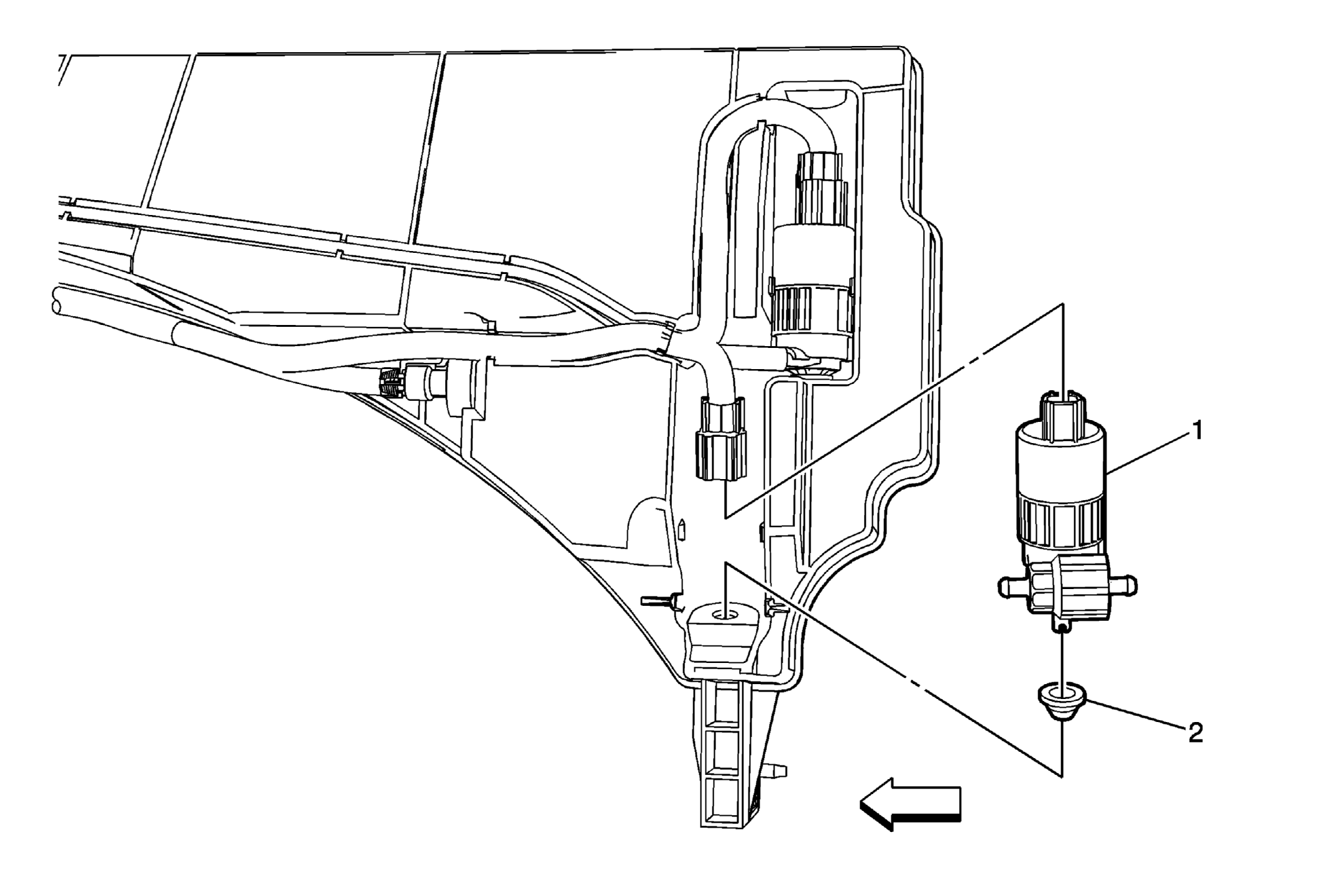

Fig 1: Identifying Windshield Washer With Seal Pump

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the windshield washer solvent container. Refer to Windshield Washer Solvent Container Replacement . Disconnect the windshield washer pump electrical connector. Using 2 suitable flat-bladed tools, gently pry the windshield washer solvent pump from the front side of the washer container. Discard the old windshield washer solvent pump grommet.
1	Windshield Washer Solvent Pump
2	Windshield Washer Solvent Pump Grommet TIP: Discard the old grommet and use the new grommet in the kit.

Callout

Component Name

Preliminary Procedures

Remove the windshield washer solvent container. Refer to Windshield Washer Solvent Container Replacement .
Disconnect the windshield washer pump electrical connector.
Using 2 suitable flat-bladed tools, gently pry the windshield washer solvent pump from the front side of the washer container.
Discard the old windshield washer solvent pump grommet.

Windshield Washer Solvent Pump

Windshield Washer Solvent Pump Grommet
TIP: Discard the old grommet and use the new grommet in the kit.
