Windshield Washer Solvent Level Switch Replacement

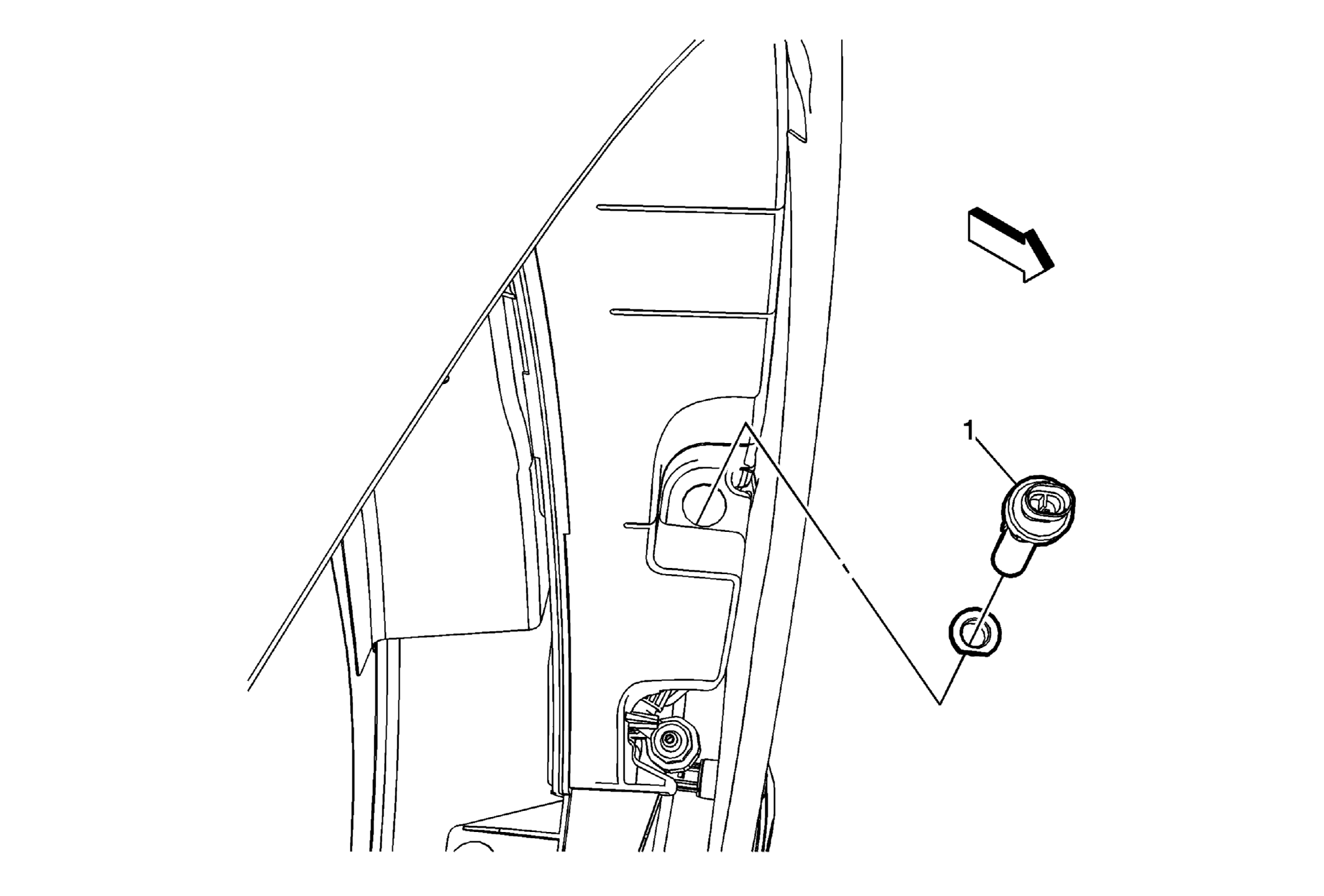

Fig 1: Identifying Windshield Washer Solvent Level Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the left front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
1	Windshield Washer Level Sensor Switch Procedure Drain the windshield washer solvent into a suitable clean container. Disconnect the electrical connector to the level sensor switch. Using 2 suitable flat-bladed tools, remove the level sensor switch from the windshield washer container. Discard the level sensor grommet.

Callout

Component Name

Preliminary Procedure
Remove the left front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .

Windshield Washer Level Sensor Switch

Procedure

Drain the windshield washer solvent into a suitable clean container.
Disconnect the electrical connector to the level sensor switch.
Using 2 suitable flat-bladed tools, remove the level sensor switch from the windshield washer container.
Discard the level sensor grommet.
