Headlamp Washer Pump Replacement

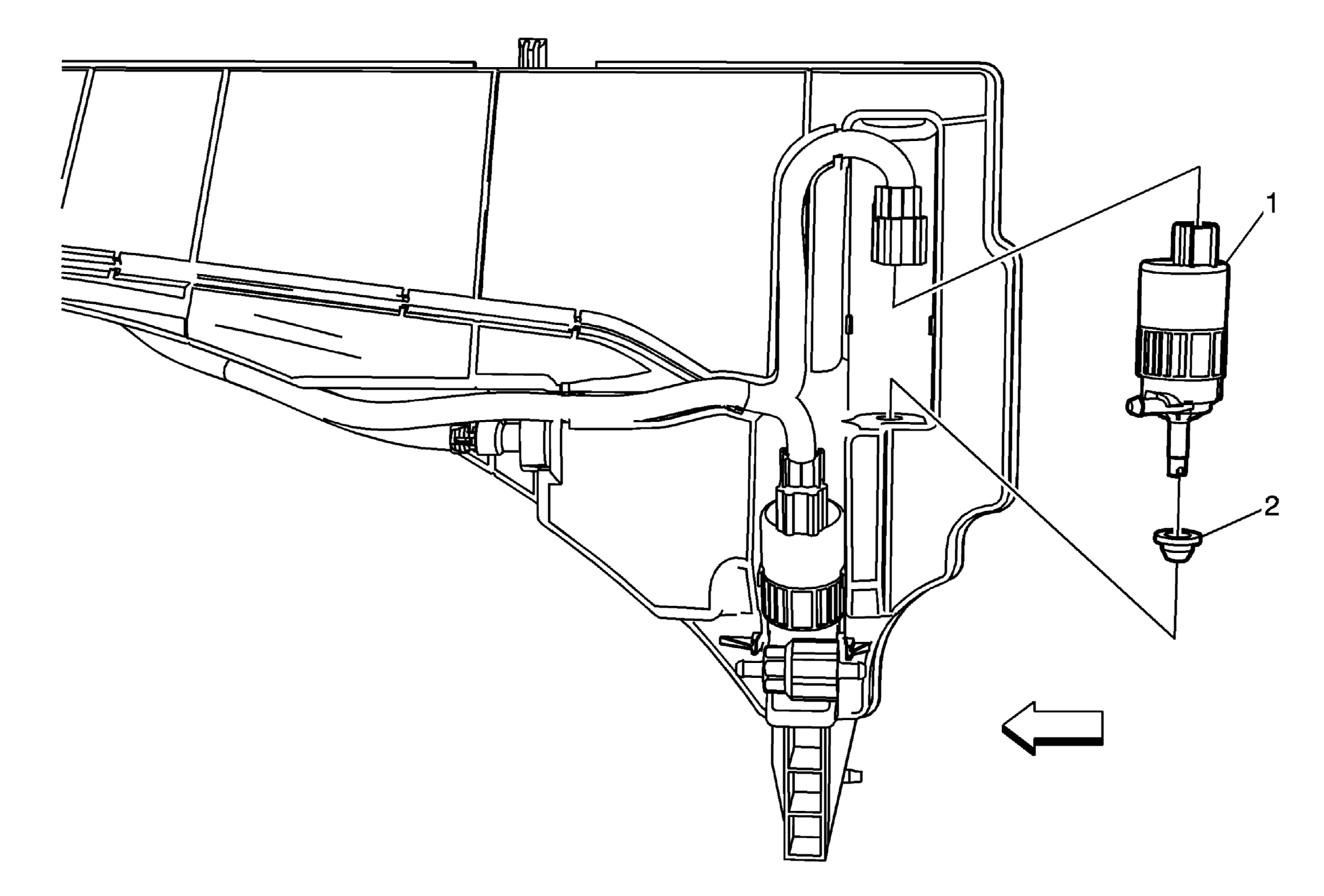

Fig 1: Identifying Headlamp Washer Pump & Grommet

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the windshield washer solvent container. Refer to Windshield Washer Solvent Container Replacement .
1	Headlamp Washer Pump Procedure Drain the windshield washer solvent into a suitable clean container. Disconnect the electrical connector to the headlamp washer pump. Disconnect the headlamp washer pump hose at the headlamp washer pump. Using two suitable flat-bladed tools under the base of the headlamp washer pump, pry upward in order to release the headlamp washer pump from the headlamp washer pump grommet. TIP: Use full strength washer solvent on the new grommet in order to aid in the installation of the new headlamp washer pump.
2	Headlamp Washer Pump Grommet TIP: Discard the headlamp washer pump grommet.

Callout

Component Name

Preliminary Procedure
Remove the windshield washer solvent container. Refer to Windshield Washer Solvent Container Replacement .

Headlamp Washer Pump

Procedure

Drain the windshield washer solvent into a suitable clean container.
Disconnect the electrical connector to the headlamp washer pump.
Disconnect the headlamp washer pump hose at the headlamp washer pump.
Using two suitable flat-bladed tools under the base of the headlamp washer pump, pry upward in order to release the headlamp washer pump from the headlamp washer pump grommet.
TIP: Use full strength washer solvent on the new grommet in order to aid in the installation of the new headlamp washer pump.

Headlamp Washer Pump Grommet
TIP: Discard the headlamp washer pump grommet.
