Roof Rail Courtesy and Reading Lamp Replacement
Roof Rail Courtesy and Reading Lamp Replacement

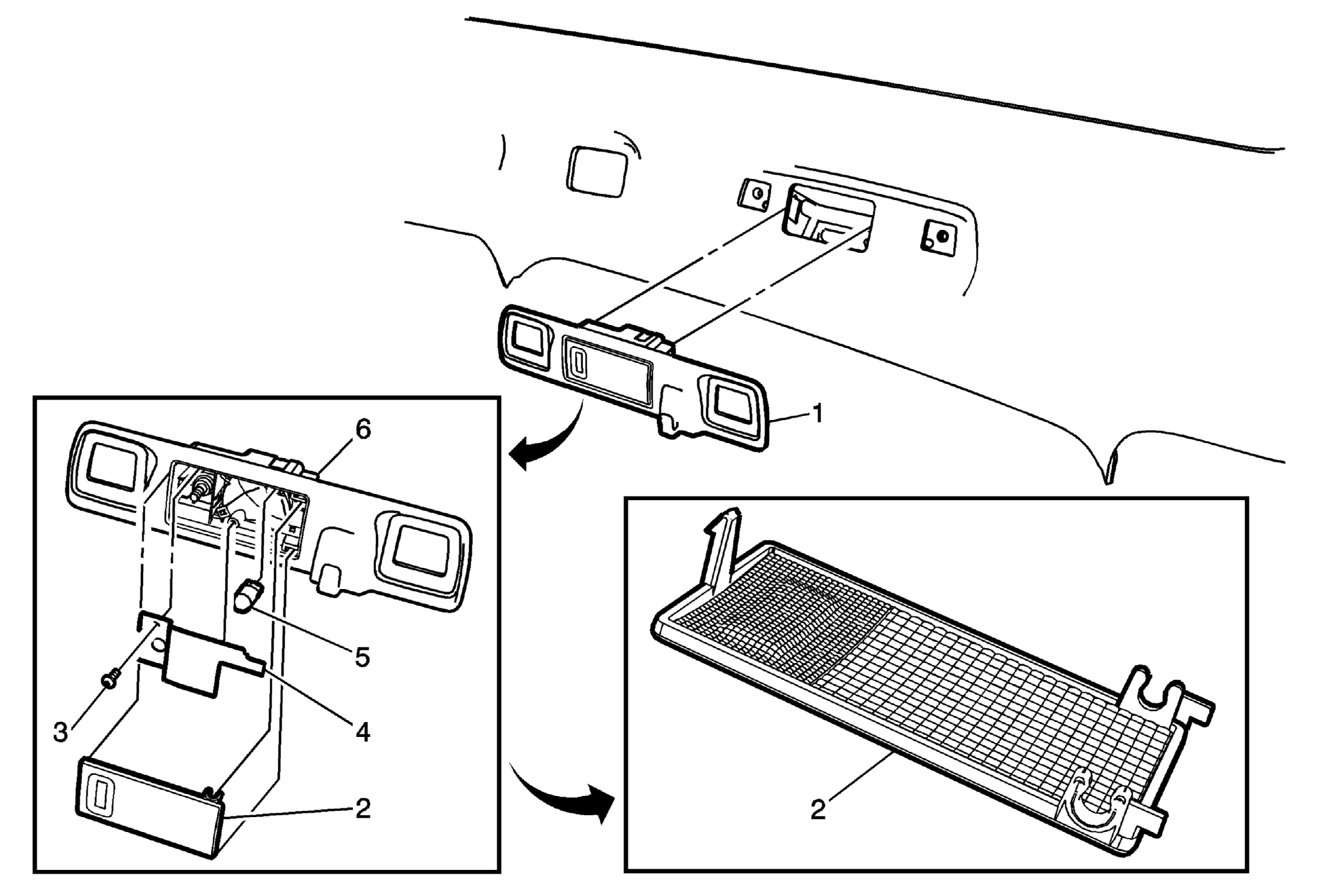

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the roof rail rear assist handle. Refer to Roof Rail Rear Assist Handle Replacement . |
|
| 1 | Roof Rail Courtesy and Reading Lamp Assembly |
| 2 | Roof Rail Courtesy and Reading Lamp Lens Procedure From the backside of the lamp assembly, using the appropriate tool, depress tab on indented side and then disengage the opposite side of the lens. |
| 3 | Light Plate Blocker Bolt
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 4 | Light Plate Blocker TIP: Remove blocker, if equipped. |
| 5 | Roof Rail Courtesy and Reading Lamp Bulb |
| 6 | Roof Rail Courtesy and Reading Lamp Bezel TIP: Remove any protective films from service part. |
