Rear Compartment Courtesy Lamp Replacement - Quarter Upper Trim

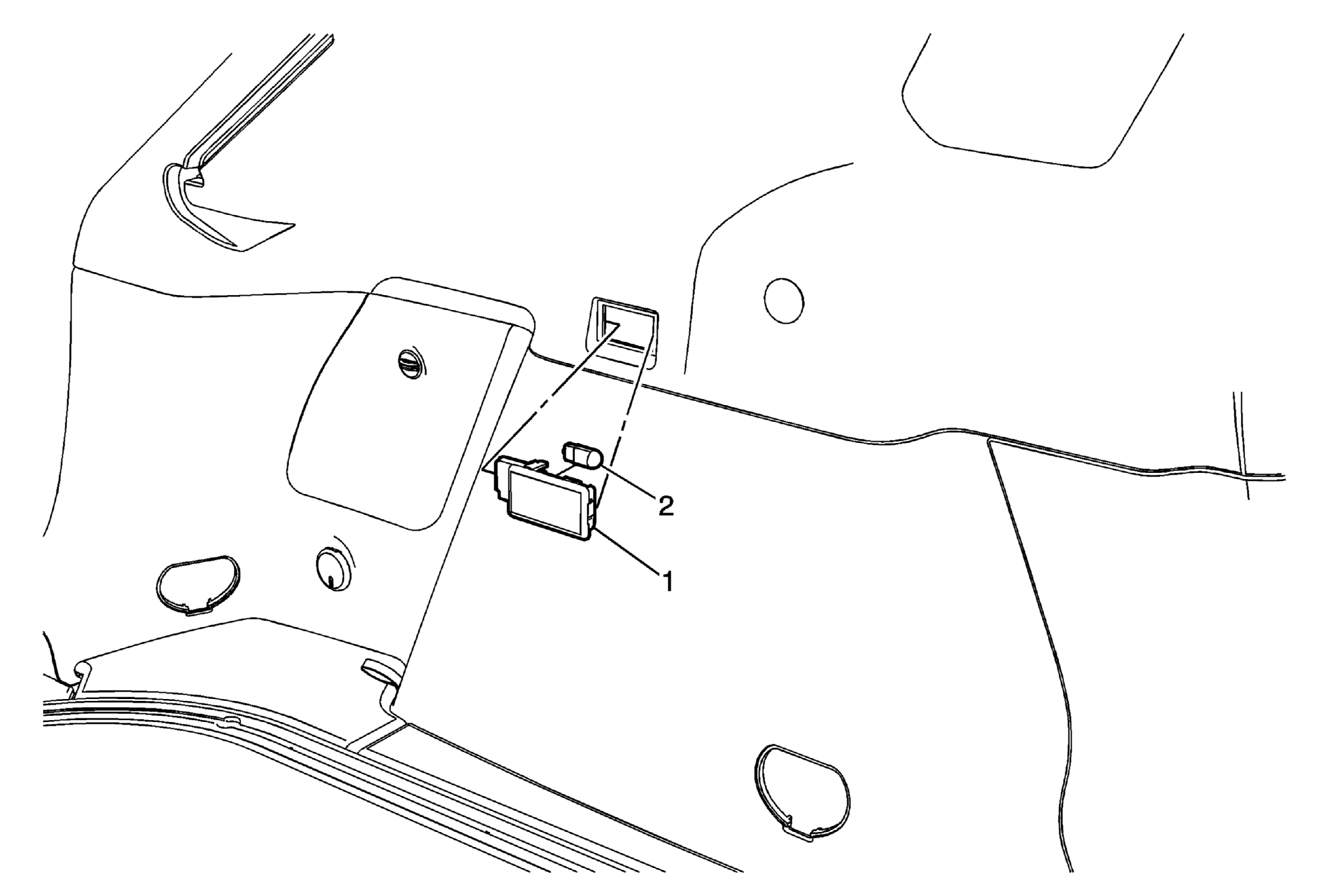

Fig 1: View Of Rear Compartment Courtesy Lamp - Quarter Upper Trim

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Compartment Courtesy Lamp - Quarter Upper Trim Procedure Use a plastic flat bladed trim tool in order to release the lamp assembly from the rear quarter trim panel. Disconnect the electrical connection.
2	Rear Compartment Courtesy Lamp Bulb

Callout

Component Name

Rear Compartment Courtesy Lamp - Quarter Upper Trim

Procedure

Use a plastic flat bladed trim tool in order to release the lamp assembly from the rear quarter trim panel.
Disconnect the electrical connection.

Rear Compartment Courtesy Lamp Bulb
