Rear Compartment Courtesy Lamp Replacement - Liftgate

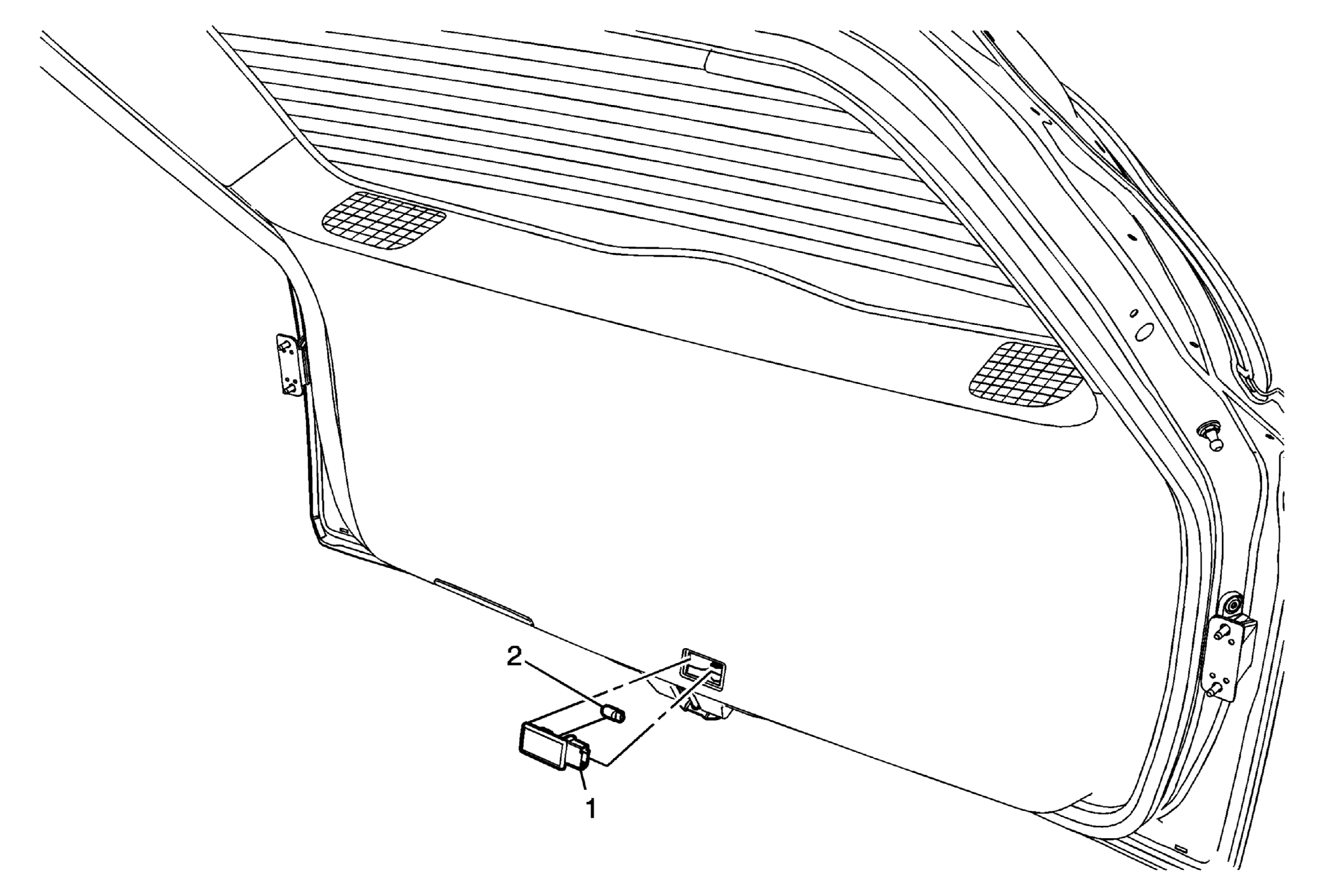

Fig 1: Identifying Rear Compartment Courtesy Lamp - Liftgate

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Compartment Courtesy Lamp - Liftgate Procedure Use a plastic flat bladed trim tool in order to release the lamp assembly from the liftgate trim panel. Disconnect the electrical connection.
2	Rear Compartment Courtesy Lamp Bulb

Callout

Component Name

Rear Compartment Courtesy Lamp - Liftgate

Procedure

Use a plastic flat bladed trim tool in order to release the lamp assembly from the liftgate trim panel.
Disconnect the electrical connection.

Rear Compartment Courtesy Lamp Bulb
