Instrument Panel Courtesy Lamp Replacement - Left Side

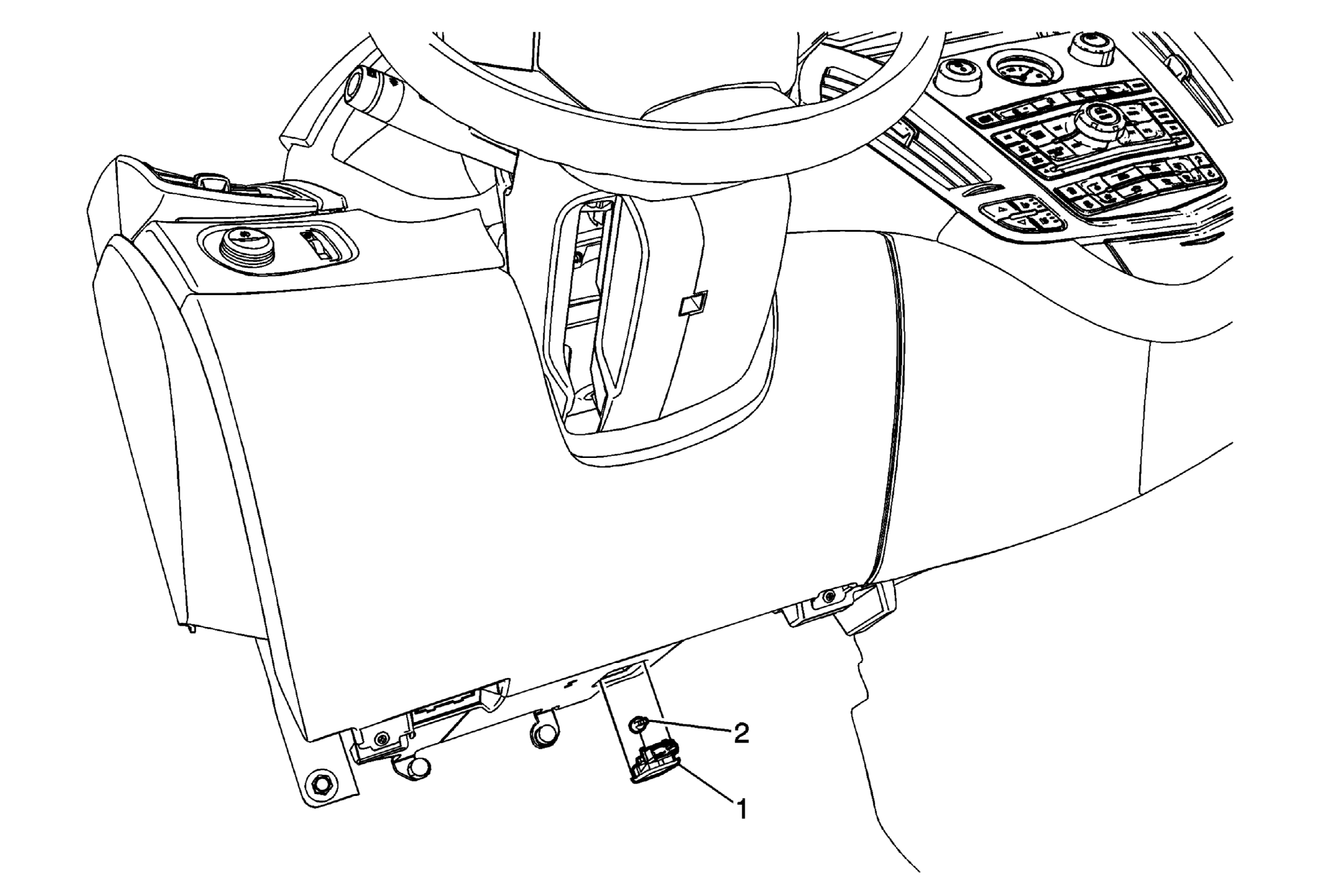

Fig 1: Identifying Instrument Panel Courtesy Lamp - Left Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Instrument Panel Courtesy Lamp Procedure Use a plastic flat-bladed trim tool in order to release the lamp assembly from the drivers side insulator panel. Disconnect the electrical connection.
2	Instrument Panel Courtesy Lamp Bulb

Callout

Component Name

Instrument Panel Courtesy Lamp

Procedure

Use a plastic flat-bladed trim tool in order to release the lamp assembly from the drivers side insulator panel.
Disconnect the electrical connection.

Instrument Panel Courtesy Lamp Bulb
