Instrument Panel Compartment Lamp Replacement

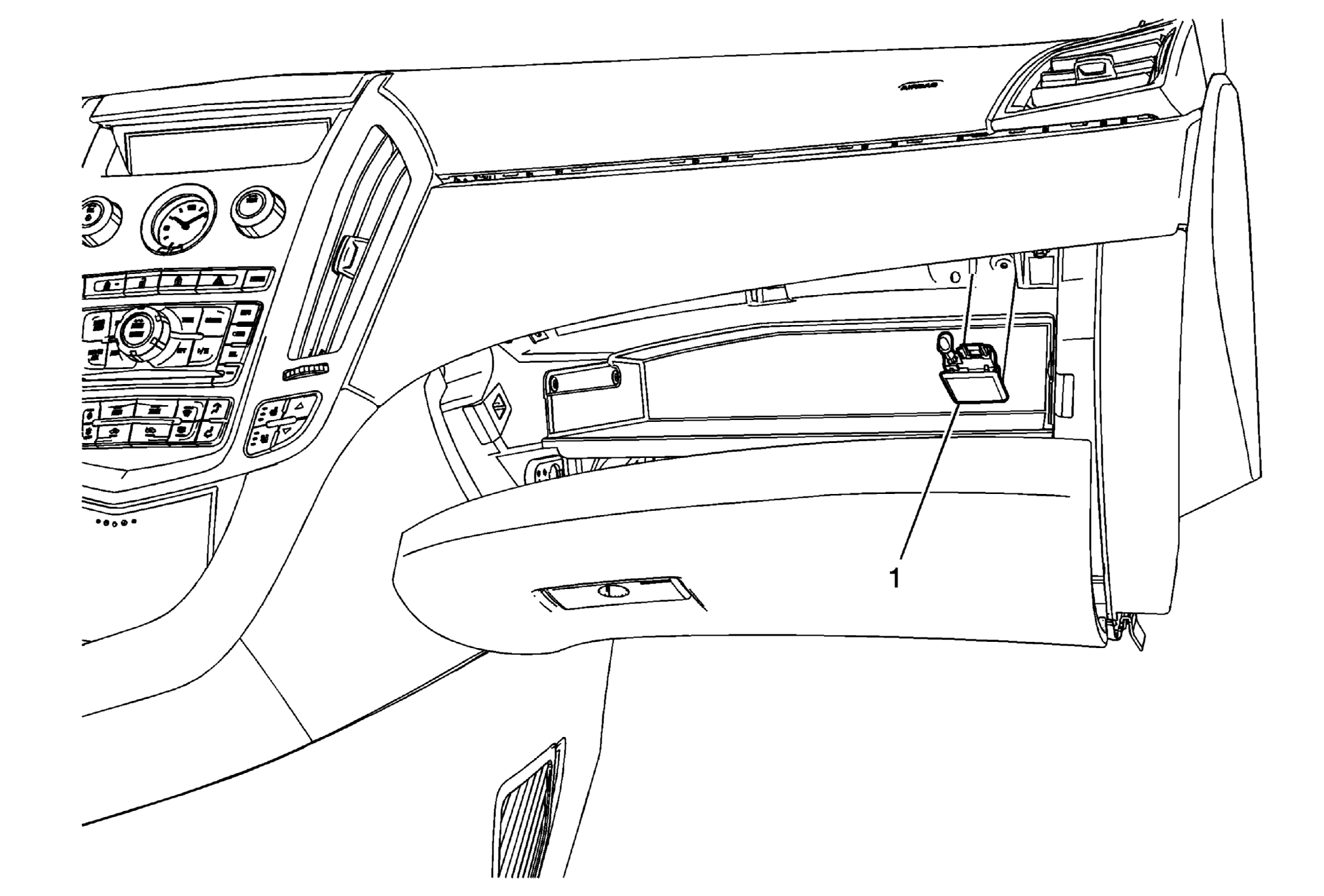

Fig 1: Identifying Instrument Panel Compartment Lamp
GM2231629Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Compartment Lamp Replacement

Callout Component Name
1 Instrument Panel Compartment Lamp

Procedure

  1. Use a plastic flat bladed trim tool in order to release the lamp assembly from the instrument panel compartment housing.
  2. Disconnect the electrical connection.
