Front Side Door Courtesy Lamp Replacement

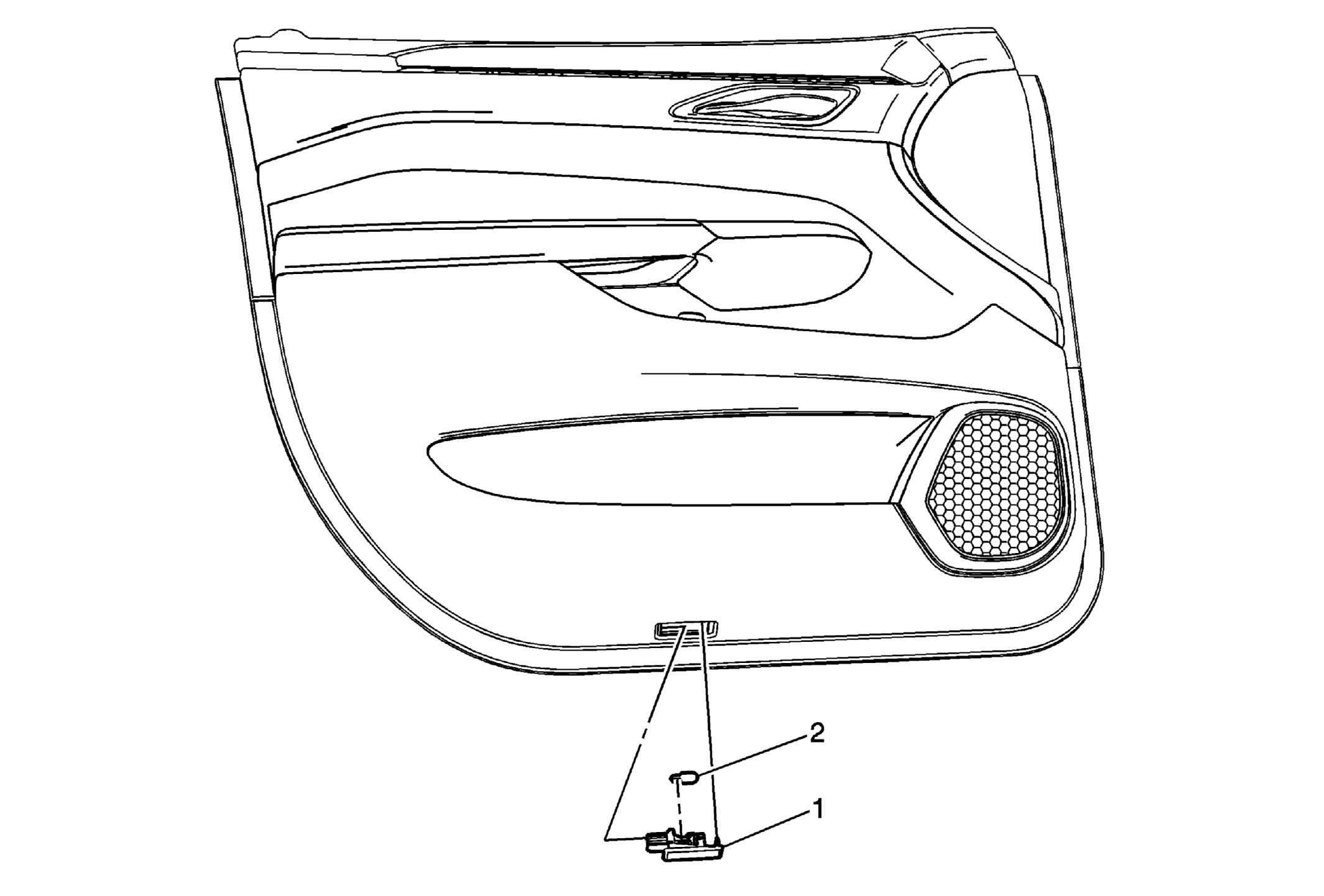

Fig 1: Identifying Front Side Door Courtesy Lamp & Bulb

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Side Door Courtesy Lamp Procedure Depress the clips and use a flat-bladed tool to remove the door courtesy lamp from the door trim panel. Disconnect the electrical connectors.
2	Front Side Door Courtesy Lamp Bulb

Callout

Component Name

Front Side Door Courtesy Lamp

Procedure

Depress the clips and use a flat-bladed tool to remove the door courtesy lamp from the door trim panel.
Disconnect the electrical connectors.

Front Side Door Courtesy Lamp Bulb
