Dome Lamp Lens Replacement

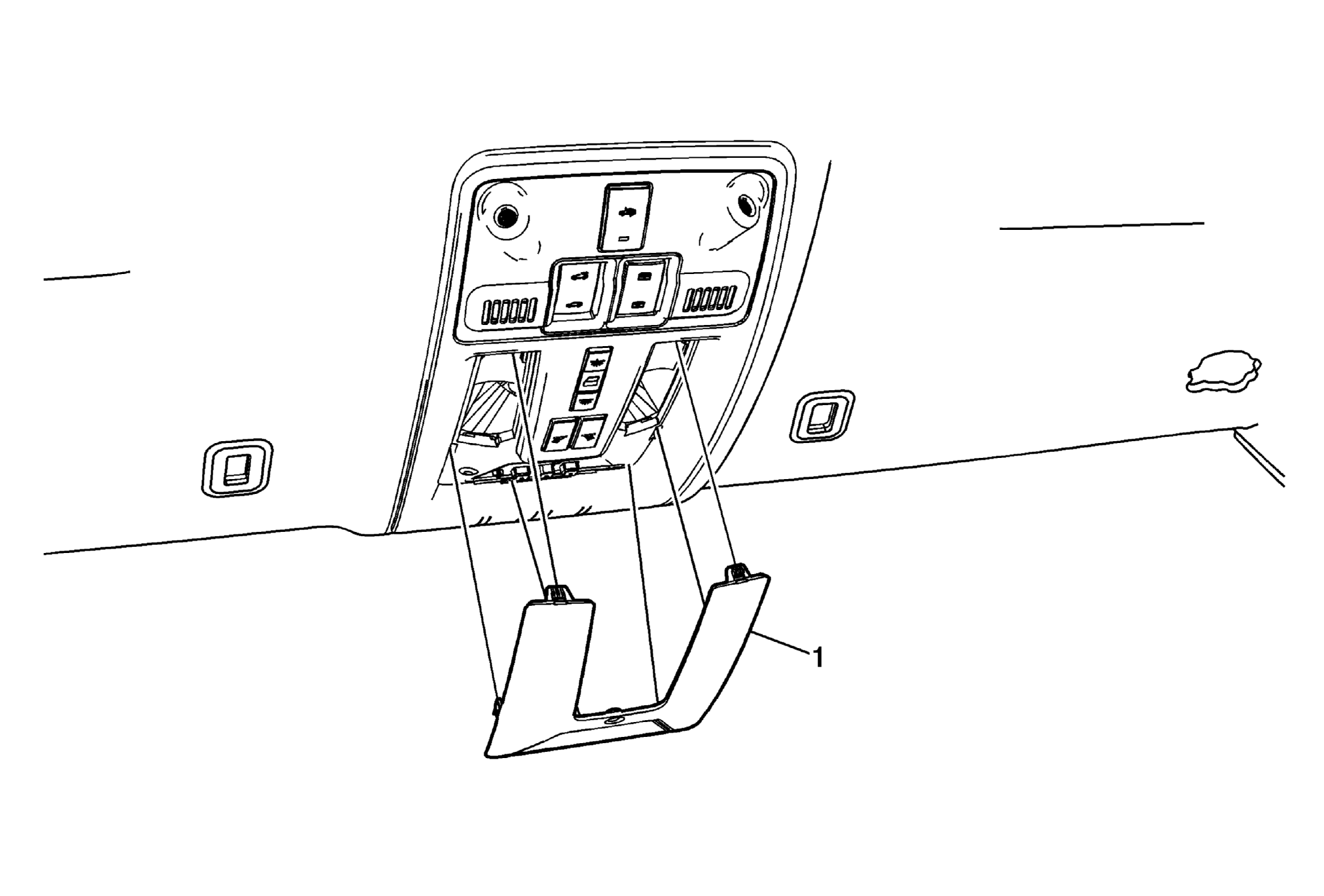

Fig 1: Identifying Dome Lamp Lens
GM2235316Courtesy of GENERAL MOTORS COMPANY
Dome Lamp Lens Replacement

Callout Component Name
1 Dome Lamp Lens
Procedure
Using nylon flat bladed tool release the four integral tabs on the lens from the roof console.
