Radio Volume Compensator Interior Noise Microphone Replacement

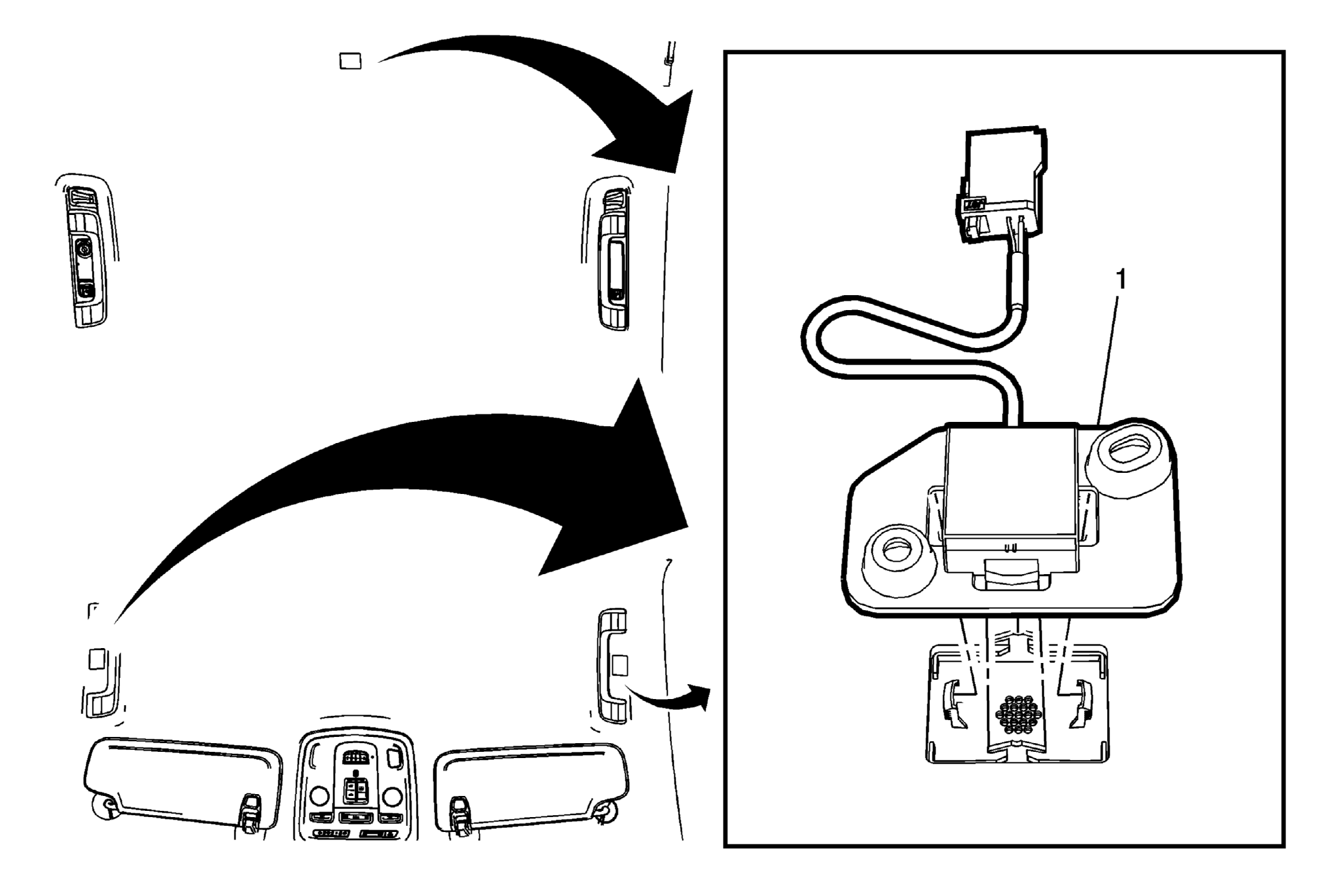

Fig 1: Radio Volume Compensator Interior Noise Microphone

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Lower the front or rear of the headlining trim panel enough to gain access to the microphone. Refer to Headlining Trim Panel Replacement (With C3U) , Headlining Trim Panel Replacement (Without C3U) .
1	Radio Volume Compensator Interior Noise Microphone (Qty: 3) Procedure Disconnect the electrical connectors. Unsnap the microphone from the grille.

Callout

Component Name

Preliminary Procedure
Lower the front or rear of the headlining trim panel enough to gain access to the microphone. Refer to Headlining Trim Panel Replacement (With C3U) , Headlining Trim Panel Replacement (Without C3U) .

Radio Volume Compensator Interior Noise Microphone (Qty: 3)

Procedure
