Power, Ground, Data Communication, and Odometer

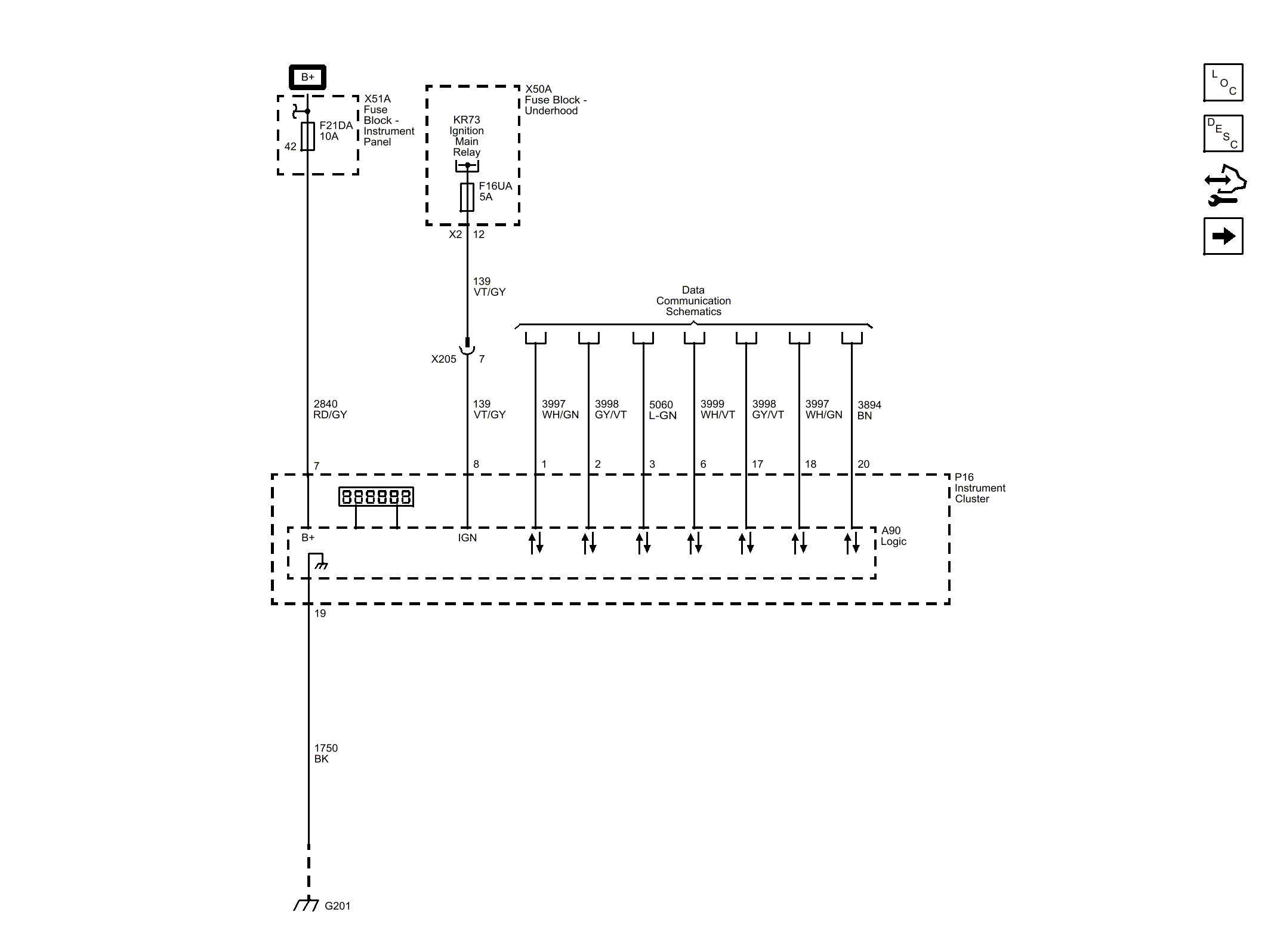

Fig 1: Power, Ground, Data Communication, and Odometer Wiring Schematic

GM3412697

Courtesy of GENERAL MOTORS COMPANY
