Instrument Cluster Wiring Schematics: Gauges

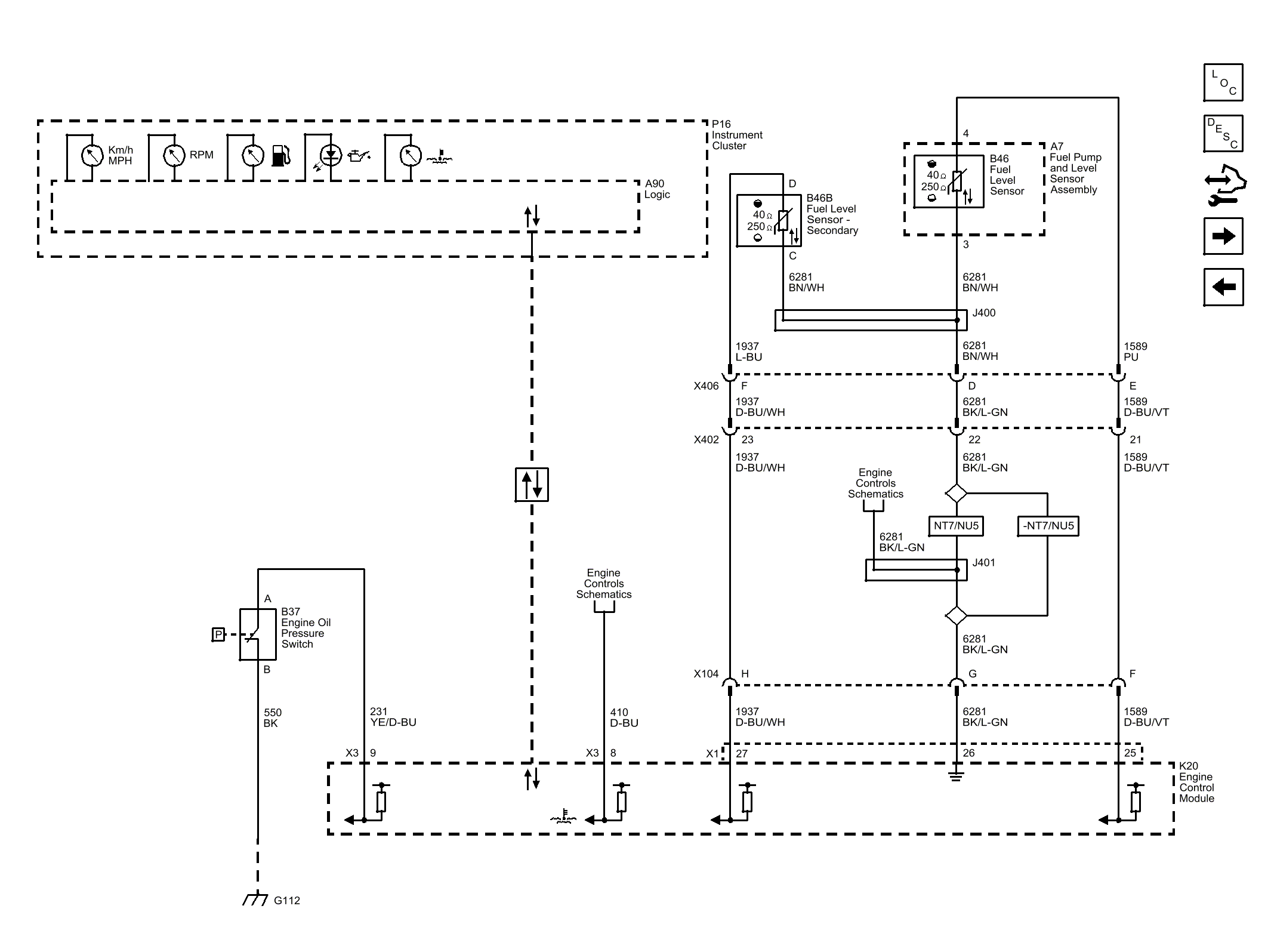

Fig 1: Gauges Wiring Schematic

GM3412698

Courtesy of GENERAL MOTORS COMPANY
