Ambient Air Temperature Gauge Sensor Replacement

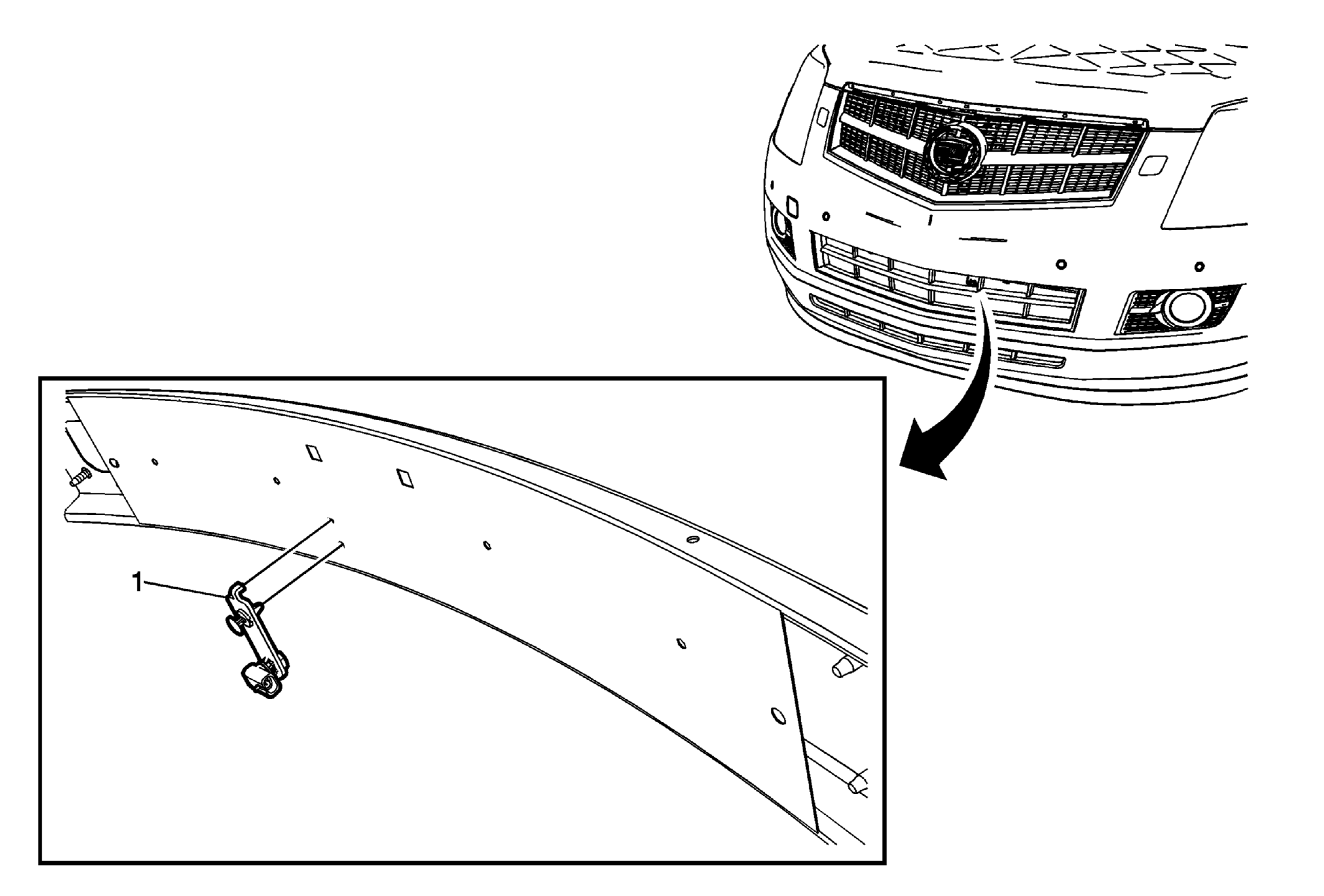

Fig 1: Identifying Ambient Air Temperature Gauge Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the radiator air lower deflector. Refer to Radiator Air Lower Deflector Replacement
1	Ambient Air Temperature Gauge Sensor Procedure Disconnect the electrical connector. Sensor is secured with integral push pin and integral tab on bracket.

Callout

Component Name

Preliminary Procedure
Remove the radiator air lower deflector. Refer to Radiator Air Lower Deflector Replacement

Ambient Air Temperature Gauge Sensor

Procedure
