F1UA, F2UA, F21UA, F22UA, F24UA, F27UA, F32UA, F33UA, F34UA, F35UA, F38UA, F39UA, and F40UA Fuses

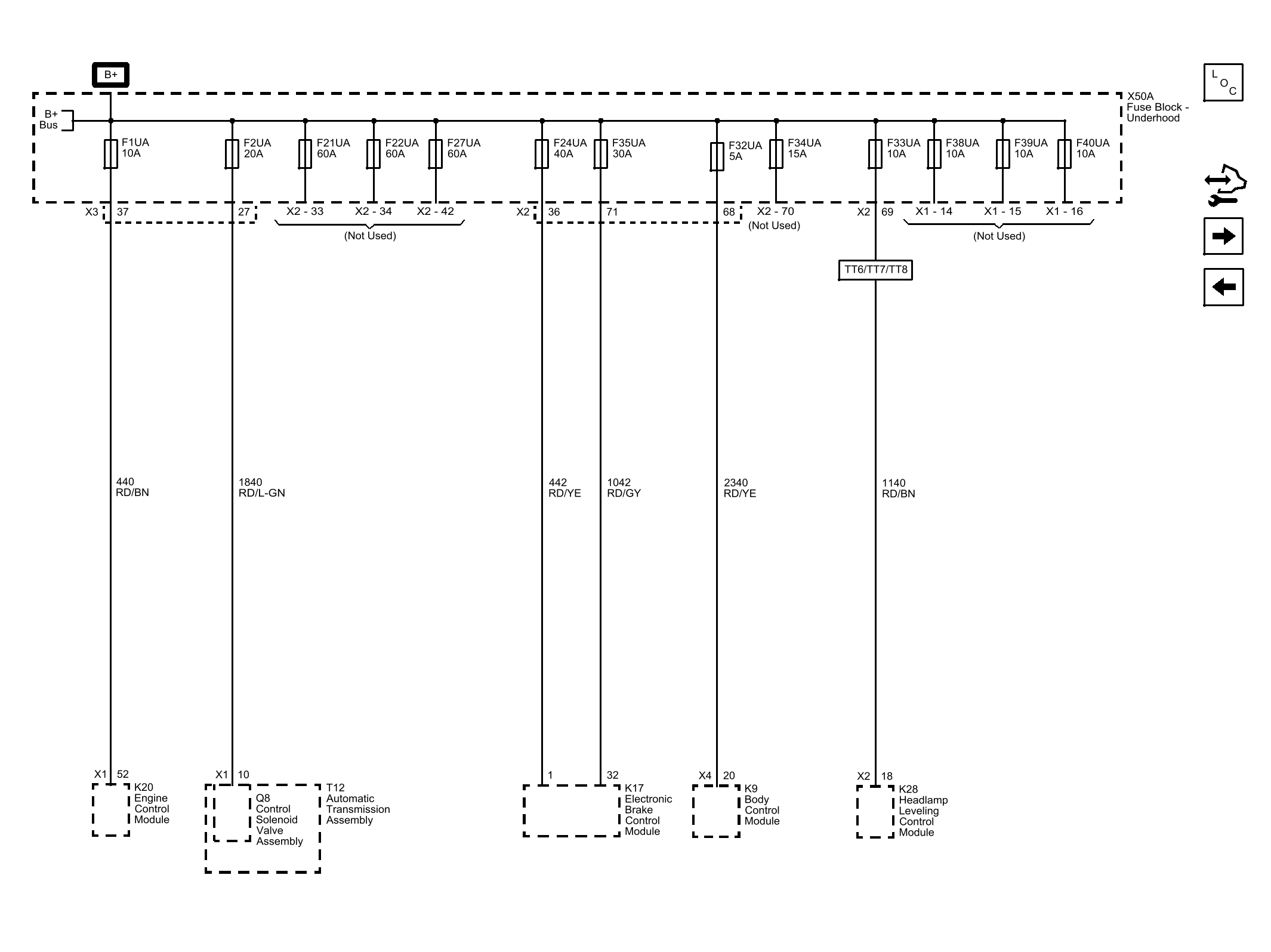

Fig 1: F1UA, F2UA, F21UA, F22UA, F24UA, F27UA, F32UA, F33UA, F34UA, F35UA, F38UA, F39UA, and F40UA Fuses Power Distribution Schematic
| Callout | Component Name |
|---|---|
| 440 | Battery Positive Voltage |
| 440_RD/BN | 440 RD/BN |
| CAV_52 | 52 |
| CONN_X1 | X1 |
| CAV_37 | 37 |
| CONN_X3 | X3 |
| 1840 | Battery Positive Voltage |
| 1840_RD/L-GN | 1840 RD/L-GN |
| CAV_10 | 10 |
| CONN_X1 | X1 |
| CAV_27 | 27 |
| 442 | Battery Positive Voltage |
| 442_RD/YE | 442 RD/YE |
| CAV_1 | 1 |
| 1042 | Battery Positive Voltage |
| 1042_RD/GY | 1042 RD/GY |
| CAV_32 | 32 |
| CAV_71 | 71 |
| 2340 | Battery Positive Voltage |
| 2340_RD/YE | 2340 RD/YE |
| CAV_20 | 20 |
| CONN_X4 | X4 |
| CAV_68 | 68 |
| 1140 | Battery Positive Voltage |
| 1140_RD/BN | 1140 RD/BN |
| CAV_18 | 18 |
| CONN_X2 | X2 |
| TT6 | HEADLAMPS-HIGH INTENSITY DISCHARGE (DO NOT USE AFTER 2009 GLOBAL/NEW MAJOR PROGRAMS, USE T4F) |
| TT7 | HEADLAMPS-HIGH INTENSITY DISCHARGE, LH RULE OF ROAD (DONT USE AFTER 2009 GLBL/NEW MAJ PROGS, USE T4F and T94) |
| TT8 | HEADLAMPS-HIGH INTENSITY DISCHARGE, RH RULE OF ROAD (DO NOT USE AFTER 2009 GLBL/NEW MAJ PROGS, USE TF4 and TB8) |
| CAV_36 | 36 |
| CONN_X2 | X2 |
| CAV_69 | 69 |
| CONN_X2 | X2 |
| F1UA | F1UA 10A |
| F2UA | F2UA 20A |
| F21UA | F21UA 60A |
| F22UA | F22UA 60A |
| F27UA | F27UA 60A |
| F24UA | F24UA 40A |
| F35UA | F35UA 30A |
| F34UA | F34UA 15A |
| F33UA | F33UA 10A |
| F38UA | F38UA 10A |
| F39UA | F39UA 10A |
| F40UA | F40UA 10A |
| F32UA | F32UA 5A |
| X50A | X50A Fuse Block - Underhood |
| K20 | K20 Engine Control Module |
| Q8 | Q8 Control Solenoid Valve Assembly (M7U/M7W) |
| T12 | T12 Automatic Transmission Assembly (M7U/M7W) |
| K17 | K17 Electronic Brake Control Module |
| K28 | K28 Headlamp Leveling Control Module (TT6, TT7 or TT8) |
| K9 | K9 Body Control Module |
