Right Rear Door Harness Routing

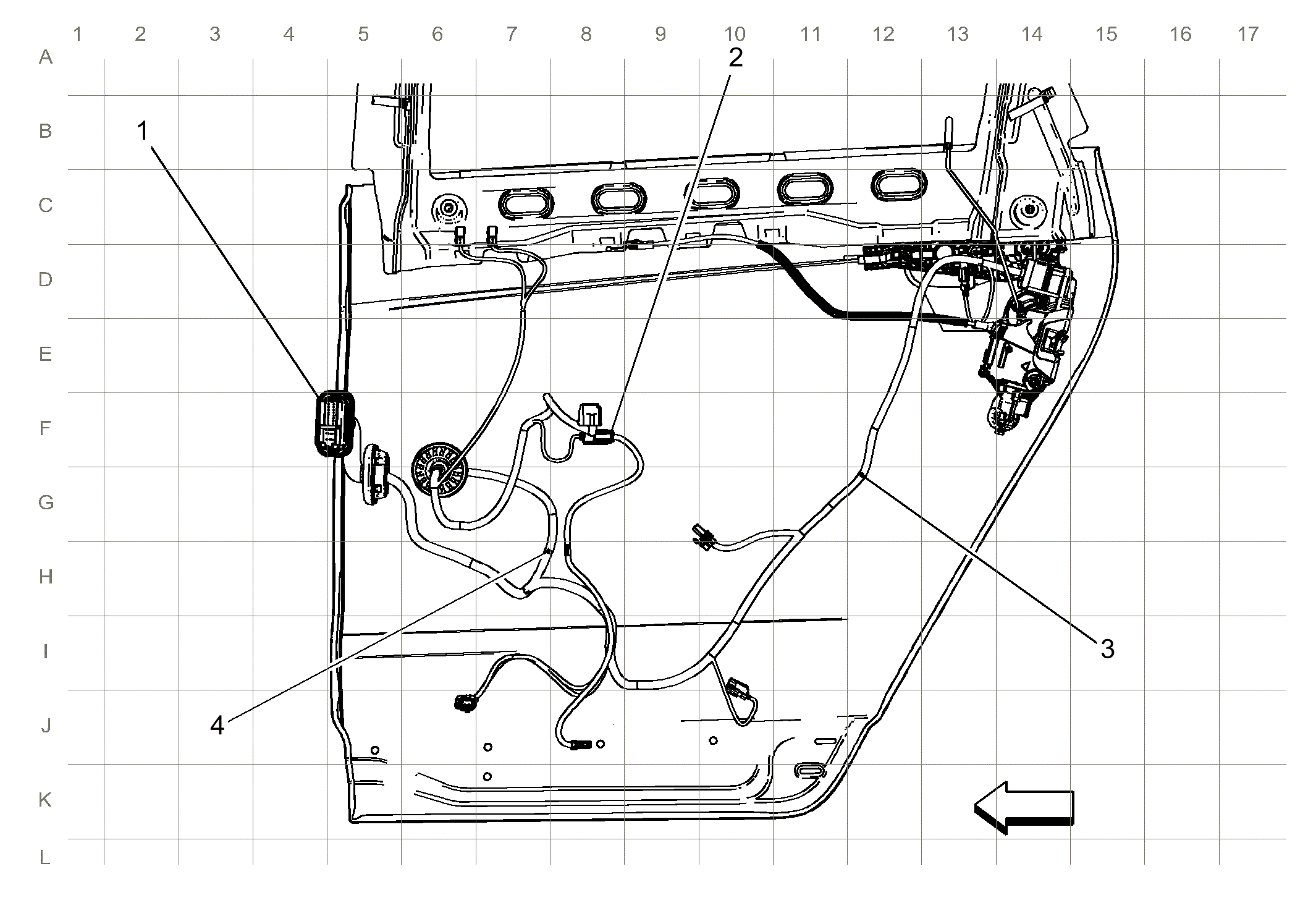

Fig 1: View Of Right Rear Door Harness Routing Diagram
GM2298189Courtesy of GENERAL MOTORS COMPANY
Items
1:  X800 X800 Body Harness to Right Rear Door Harness
2:  X805 X805 Right Rear Door Harness to Right Rear Door Trim Harness
3:  J800
4:  J802
