Passenger Door Harness Routing

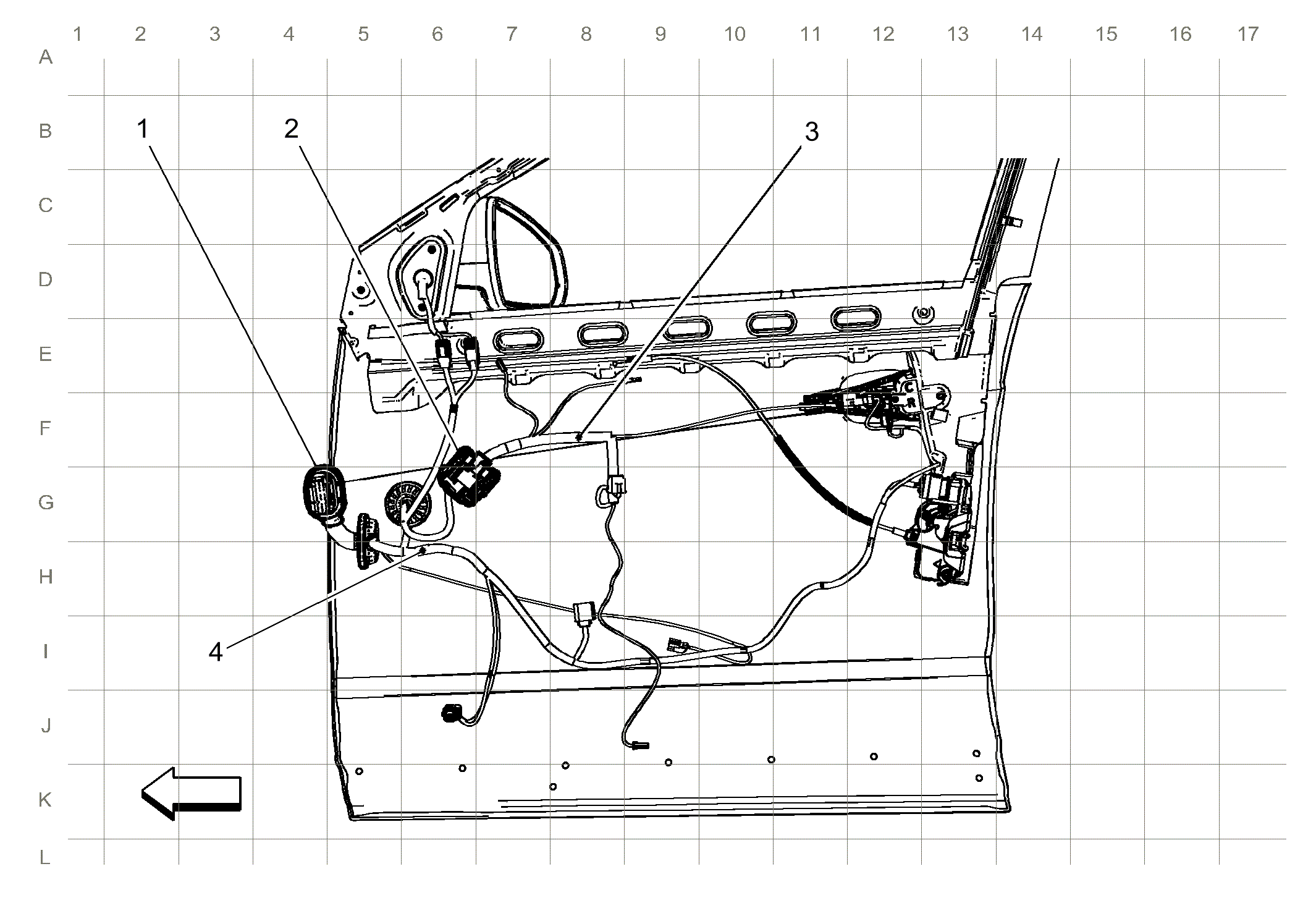

Fig 1: View Of Passenger Door Harness Routing Diagram
GM2298168Courtesy of GENERAL MOTORS COMPANY
Items
1:  X600 X600 Body Harness to Passenger Door Harness
2:  X605 X605 Passenger Door Harness to Passenger Door Trim Harness
3:  J603
4:  J602
